Description
The NETGEAR 300 Series Unmanaged Switches provide easy and affordable network connectivity to home and small offices. They are easy to use and reliable. With these Plug-and-Play switches, you can expand your network connections to multiple devices instantly. The 300 series also support the efficient use of energy, helping you save power and money.
Highlights of the NETGEAR 5-Port GS308 Gigabit Ethernet Unmanaged Network Switch
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation (except GS348)
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Desktop or wall-mountable (5, 8, 16-port models); GS324 is desktop, wall-mountable, and rack-mountable (rack-mount kit included); GS348 is rackmountable (rack-mount kit included)
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards based devices in the existing network
Specifications
Summary
- Product Description

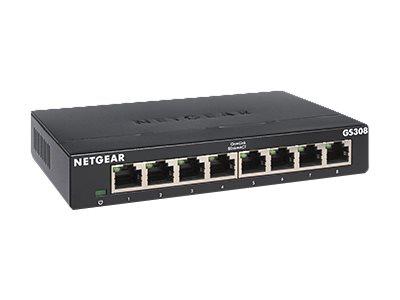

- NETGEAR GS308v3 - switch - 8 ports - unmanaged
- Device Type
- Switch - 8 ports - unmanaged
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000
- Performance
- Bandwidth: 16 Gbps , Forwarding performance (64-byte packet size): 1448000 pps
- Capacity
- Packet buffer size: 128
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9216 bytes
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), fanless, Energy Efficient Ethernet, SOHO (Small Office/Home Office), Weighted Round Robin (WRR)
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Dimensions (WxDxH)
- 15.8 cm x 10.1 cm x 2.9 cm
- Weight
- 390 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - unmanaged
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000
- Performance
- Bandwidth: 16 Gbps , Forwarding performance (64-byte packet size): 1448000 pps
- Capacity
- Packet buffer size: 128
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9216 bytes
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), fanless, Energy Efficient Ethernet, SOHO (Small Office/Home Office), Weighted Round Robin (WRR)
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Status Indicators
- Power, link/activity
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45
Power
- Power Device
- External power adapter
- Power Consumption Operational
- 3.04 Watt
- Power Consumption Stand by
- 0.36 Watt
Miscellaneous
- MTBF
- 3,711,898 hours
- Compliant Standards
- Plug and Play, IC Class B, VCCI, CB, FCC Part 15 B, CCC, LVD, KC, RCM
Dimensions & Weight
- Width
- 15.8 cm
- Depth
- 10.1 cm
- Height
- 2.9 cm
- Weight
- 390 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
