Description
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

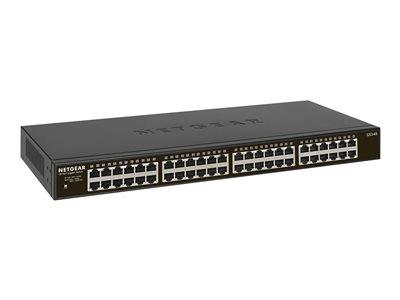

Highlights of the NETGEAR 48 Port GigE Unmanaged Rackmount Switch
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards-based devices in the existing network
- Rack-mountable (rackmount kit included)
Specifications
Summary
- Product Description
- NETGEAR SOHO GS348 - switch - 48 ports - unmanaged - rack-mountable
- Device Type
- Switch - 48 ports - unmanaged
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000
- Performance
- Bandwidth: 96 Gbps , Forwarding performance (64-byte packet size): 1448000 packets per second , Latency (64-byte packets): 4 µs
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9216 bytes
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), fanless, 1.5MB packet buffer, Energy-Efficient Ethernet (EEE)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Power
- AC 120/230 V (50 - 60 Hz)
- Dimensions (WxDxH)
- 44 cm x 20.4 cm x 4.32 cm
- Weight
- 3.15 kg
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - unmanaged
- Enclosure Type
- Desktop, rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000
- Performance
- Bandwidth: 96 Gbps , Forwarding performance (64-byte packet size): 1448000 packets per second , Latency (64-byte packets): 4 µs
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9216 bytes
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), fanless, 1.5MB packet buffer, Energy-Efficient Ethernet (EEE)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Status Indicators
- Power, link/activity
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
- Power Consumption Operational
- 23 Watt
- Power Consumption Stand by
- 8.81 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- Plug and Play
Dimensions & Weight
- Width
- 44 cm
- Depth
- 20.4 cm
- Height
- 4.32 cm
- Weight
- 3.15 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
