Description
The world’s first enterprise SATA SSD with 96-layer NAND, the Micron 5300 SATA series of SSDs lets you modernize your data center and cloud servers now. Get proven architecture, plus new NAND, features and models you need to power the future.

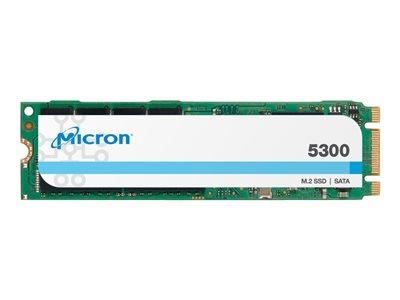

Highlights of the Micron Crucial Micron 5300 PRO - Solid state drive - 480 GB - internal - M.
- · Enterprise-class SATA storage delivers robust, consistent performance at 6 Gb/s for your data center and cloud at market competitive pricing. Refresh and gain performance upgrades with Micron’s new 5300 SATA SSD
- · Built upon Micron’s innovation in 96-layer 3D TLC NAND, delivering data density with a strong price-performance ratio
- · Popular capacities from 240GB to 8TB. Market-friendly M.2 (22x80 mm) and 2.5-inch form factor options
- · Maximize performance for read-intensive and mixed-use segments: media streaming, OLTP, block object, BI/DSS, and small random block. The 5300 PRO delivers in the capacity tier on VDI and virtualization workloads, while the 5300 MAX delivers on the cache tier
- · More security for your SATA: TCG Enterprise, TCG Opal 2.0 to support on-device encryption for SEDs, AES 256-bit encryption, SATA ATA8 Security, Flex Capacity, power loss protection for data at-rest & in-flight, enterprise data path protection for user & meta data, secure firmware, adaptive thermal monitoring, and hot pluggable makes it easy to install
- · Sequential reads for at 540 MB/s for both M.2 and 2.5-inch SSDs.14
-
Solid data security
Secure your data with power-loss protection, and enterprise data path protection. -
Strong read-intensive, mixed-use performance
Optimizations drive strong performance for media streaming, business analytics, OLTP, and block and object storage.
Specifications
Summary
- Product Description
- Micron 5300 PRO - solid state drive - 480 GB - SATA 6Gb/s
- Type
- Solid state drive - internal
- Capacity
- 480 GB
- NAND Flash Memory Type
- 3D triple-level cell (TLC)
- Form Factor
- M.2 2280
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Features
- Adaptive thermal monitoring, RAIN technology, Hot-Plug Support, Read-Intensive Endurance, Enterprise Data Path Protection, ATA security, Flex Capacity, 96-layer 3D NAND technology
- Dimensions (WxDxH)
- 22 mm x 80 mm x 3.8 mm
- Weight
- 10 g
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 480 GB
- NAND Flash Memory Type
- 3D triple-level cell (TLC)
- Form Factor
- M.2 2280
- Interface
- SATA 6Gb/s
- Features
- Adaptive thermal monitoring, RAIN technology, Hot-Plug Support, Read-Intensive Endurance, Enterprise Data Path Protection, ATA security, Flex Capacity, 96-layer 3D NAND technology
- Width
- 22 mm
- Depth
- 80 mm
- Height
- 3.8 mm
- Weight
- 10 g
Performance
- SSD Endurance
- 1324 TB
- Drive Transfer Rate
- 600 MBps (external)
- Internal Data Rate
- 540 MBps (read) / 410 MBps (write)
- 4KB Random Read
- 85000 IOPS
- 4KB Random Write
- 36000 IOPS
- Average Latency
- 100 µs
Reliability
- MTBF
- 3,000,000 hours
- Non-Recoverable Errors
- 1 per 10^17
Expansion & Connectivity
- Interfaces
- 1 x SATA 6 Gb/s - 7 pin Serial ATA
- Compatible Bay
- M.2 2280
Power
- Power Consumption
- 3 Watt (sequential read) , 3.9 Watt (sequential write)
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
