Description

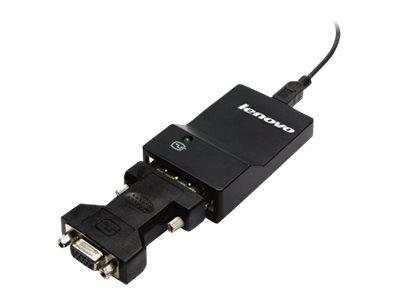

USB is ubiquitous. The Lenovo USB 3.0 to DVI/VGA Monitor Adapter (0B47072) provides a quick and easy way to attach an analog or digital monitor to a ThinkPad or ThinkCentre USB port, helping to increase productivity through the use of multiple monitors.
The Lenovo USB 3.0 to DVI/VGA Monitor Adapter is ideal for increasing the efficiency of everyday tasks. View and extend spreadsheets across multiple monitors, or view financial charts simultaneously. Using multiple USB 3.0 to DVI/VGA Monitor Adapters reduces overlapping of windows when multitasking is required, and increases overall user experience and productivity. Adapters coexist with existing system monitor ports and installed graphics cards.
Highlights of the Lenovo USB 3.0 to DVI/VGA Monitor Adapter
- Attach up to six adapters on one system
- Attach VGA analog or Digital DVI monitor, projector
- Plug and Play
- Hot plug; attach or detach monitor without system reboot
- Resumes from hibernation and suspend modes
- 16 and 32-bit color depth supported at all monitor resolutions
- Primary display, extended "stretched" desktop and mirrored "clone" desktop modes
- Each USB 3.0 to DVI/VGA Monitor Adapter can be independently configured
- Images can be rotated 90, 180, and 270 degrees
- Attaches to notebook and desktop systems via USB 3.0 or USB 2.0 bus-powered port
- USB 3.0 standard-A plug attaches to the notebook or desktop system
- Micro-B plug attaches to the USB 3.0-to-DVI Monitor Adapter
- Digital DVI monitors attach to the DVI-I receptacle connector on the
- USB 3.0-to-DVI Monitor Adapter
- Analog VGA monitor attaches to DVI-to-VGA adapter that is connected to the DVI-I receptacle connector on the USB 3.0-to-DVI Monitor Adapter
Specifications
Summary
- Product Description
- Lenovo USB 3.0 to DVI/VGA Monitor Adapter - external video adapter
- Device Type
- External video adapter
- Bus Type
- SuperSpeed USB 3.0
- Max Resolution
- 2048 x 1152
- Interfaces
- DVI-I , VGA - with adapter
- Dimensions (WxDxH)
- 5 cm x 8 cm x 2.5 cm
- Manufacturer Warranty
- 1-year warranty
- Designed For
- IdeaPad 1 14; 1 15; 3 15; 3 15IGL05; IdeaPad Gaming 3 15; IdeaPad Slim 7 15ITL05; ThinkCentre M90a Gen 2; M90q Gen 2; ThinkPad L13 Gen 2; L13 Yoga Gen 2; P15v Gen 2; T14s Gen 2; T15p Gen 2; X13 Gen 2; V14 G2 IJL; V14 G2 ITL; V15 G2 IJL; Yoga 7 14; Yoga Slim 7 Pro 14ACH5 D; 7 Pro 14ACH5 OD; 7 Pro 16
Detailed Specification
General
- Device Type
- External video adapter
- Bus Type
- SuperSpeed USB 3.0
- Max Resolution
- 2048 x 1152
- Interfaces
- DVI-I , VGA - with adapter
Miscellaneous
- Cables Included
- 1 x USB cable - 70 cm , 1 x DVI-VGA adapter
- Software Included
- Driver
- Compliant Standards
- VCCI, C-Tick, CB, FCC, KC
- Width
- 5 cm
- Depth
- 8 cm
- Height
- 2.5 cm
- Weight
- 138 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 90%
Compatibility Information
- Designed For
- Lenovo IdeaPad 1 14IJL7 82LV , Lenovo IdeaPad 1 15IJL7 82LX , Lenovo IdeaPad 3 15ALC6 82MF , Lenovo IdeaPad 3 15IGL05 82BU , Lenovo IdeaPad 3 15ITL6 82MD , Lenovo IdeaPad Creator 5 16ACH6 82L6 , Lenovo IdeaPad Gaming 3 15ACH6 82K2 , Lenovo IdeaPad Gaming 3 15IHU6 82MG , Lenovo IdeaPad Slim 7 15ITL05 82AF , Lenovo Legion 5 15ACH6 82JW , Lenovo Legion 5 15ACH6A 82NW , Lenovo Legion 5 15IMH6 82NL , Lenovo Legion 5 15ITH6 82JK , Lenovo Legion 5 15ITH6H 82JH , Lenovo Legion 5 17ACH6 82K0 , Lenovo Legion 5 17ITH6 82JN , Lenovo Legion 5 17ITH6H 82JM , Lenovo Legion 5 Pro 16ACH6 82JS , Lenovo Legion 5 Pro 16ITH6 82JF , Lenovo Legion 5 Pro 16ITH6H 82JD , Lenovo Legion 7 16ITHg6 82K6 , Lenovo Legion S7 15ACH6 82K8 , Lenovo ThinkBook 14p G2 ACH 20YN , Lenovo ThinkBook 16p G2 ACH 20YM , Lenovo ThinkCentre M90a Gen 2 11JY, 11K1 , Lenovo ThinkCentre M90q Gen 2 11MQ, 11MR, 11MV , Lenovo ThinkPad E14 Gen 3 20Y7, 20YD , Lenovo ThinkPad E15 Gen 3 20YG, 20YH , Lenovo ThinkPad L13 Gen 2 21AB, 21AC , Lenovo ThinkPad L13 Yoga Gen 2 21AD, 21AE , Lenovo ThinkPad L14 Gen 2 20X5, 20X6 , Lenovo ThinkPad L15 Gen 2 20X7, 20X8 , Lenovo ThinkPad P1 Gen 4 20Y3, 20Y4 , Lenovo ThinkPad P14s Gen 2 20VY, 21A0, 21A1 , Lenovo ThinkPad P15s Gen 2 20W7 , Lenovo ThinkPad P15v Gen 2 21A9, 21AA , Lenovo ThinkPad P17 Gen 2 20YV , Lenovo ThinkPad T14 Gen 2 20XK, 20XL , Lenovo ThinkPad T14s Gen 2 20XF, 20XG , Lenovo ThinkPad T15p Gen 2 21A8 , Lenovo ThinkPad X1 Extreme Gen 4 20Y5, 20Y6 , Lenovo ThinkPad X13 Gen 2 20WL, 20XH, 20XJ , Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9 , Lenovo V14 G2 IJL 82QX , Lenovo V14 G2 ITL 82NM , Lenovo V14 IGL 82C2 , Lenovo V15 G2 IJL 82QY , Lenovo Yoga 6 13ALC6 82ND , Lenovo Yoga 7 14ACN6 82N7 , Lenovo Yoga 7 14ITL5 82LW , Lenovo Yoga Slim 7 Pro 14ACH5 D 82NJ , Lenovo Yoga Slim 7 Pro 14ACH5 O 82N5 , Lenovo Yoga Slim 7 Pro 14ACH5 OD 82NK , Lenovo Yoga Slim 7 Pro 14ARH5 82LA , Lenovo Yoga Slim 7 Pro 16ACH6 82QQ
