Description
Enterprise-class Universal Docking
The ThinkPad Hybrid USB-C with USB-A dock expands the capabilities of most laptops, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability like PXE boot and MAC address Pass-through, the ThinkPad Hybrid USB-C with USB-A offers three high-speed USB3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks. In addition, with the included USB-C to USB-A adaptor, it can also provide port replication to non-Lenovo or USB-C notebooks.

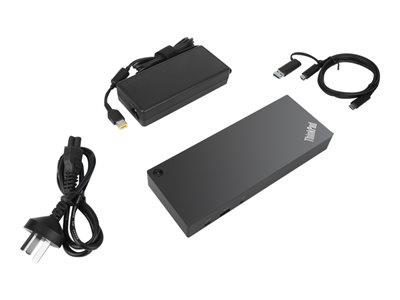

Highlights of the Lenovo ThinkPad Hybrid USB-C with USB-A Dock - Do
- One dock for all notebooks
- Rich performance
- Enterprise manageability & simplification
-
One dock for all notebooks
Enhances the performance of Lenovo USB-C notebooks and tablets through USB-C connection, as well as previous generation and market notebooks through the USB-C to USB-A adaptor. -
Rich performance
Provides up to dual UHD 4K display with DP and HDMI ports. Up to 10 Gbps data transfer speed on three USB3.1 gen2 ports, and rapid charging for ThinkPad family notebooks. -
Enterprise manageability & simplification
Host of manageability features like PXE boot, Wake-On-Lan from sleep mode, and MAC address pass-through. Ideal for enterprise customers.
Specifications
Summary
- Product Description
- Lenovo ThinkPad Hybrid USB-C with USB-A Dock - docking station - USB-C - 2 x HDMI, 2 x DP - GigE
- Product Type
- Docking station
- Docking Interface
- USB-C
- Video Interfaces
- 2 x HDMI, 2 x DP
- Dimensions (WxDxH)
- 21 cm x 8 cm x 3 cm
- Weight
- 475 g
- Localisation
- English / United Kingdom
- Networking
- Gigabit Ethernet
- Power
- Power adapter 135 Watt
- Manufacturer Warranty
- 3-year warranty
- Designed For
- Miix 520-12IKB; Tablet 10; ThinkPad E480; E580; L380; L380 Yoga; L470; L480; L580; P51s; P52s; T25; T470; T470p; T470s; T480; T480s; T570; T580; X1 Carbon; X1 Tablet; X1 Yoga; X270; X280; ThinkPad Yoga 370
Detailed Specification
General
- Product Type
- Docking station
- Width
- 21 cm
- Depth
- 8 cm
- Height
- 3 cm
- Weight
- 475 g
- Localisation
- English / United Kingdom
Networking
- Data Link Protocol
- Gigabit Ethernet
Expansion / Connectivity
- Interfaces
- 2 x USB 3.1 Gen 2 , USB 3.1 Gen 2 with Always-on charging , 1 x USB 2.0 - 4 pin USB Type A , 1 x USB 3.1 Gen 2 , 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 , 2 x audio / video - DisplayPort - 20 pin DisplayPort , 2 x audio / video - HDMI - 19 pin HDMI Type A , 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole
Miscellaneous
- Cables Included
- 1 x USB-C to USB-C / USB 3.0 type A cable - external
- Features
- Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, MAC address pass-through
- Compliant Standards
- TUV, VCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, Ukraine EMC DoC, LoA
Power
- Power Device
- Power adapter
- Power Provided
- 135 Watt
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Dimensions & Weight (Shipping)
- Shipping Width
- 27 cm
- Shipping Depth
- 16.5 cm
- Shipping Height
- 8.8 cm
- Shipping Weight
- 1.35 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 35 °C
Compatibility Information
- Designed For
- Lenovo IdeaPad 1 14IJL7 82LV , Lenovo IdeaPad 1 15IJL7 82LX , Lenovo IdeaPad 3 14ADA6 82KQ , Lenovo IdeaPad 3 15ADA6 82KR , Lenovo IdeaPad 3 15ALC6 82KU, 82MF , Lenovo IdeaPad 3 15ITL6 82MD , Lenovo IdeaPad 3 17ADA6 82KS , Lenovo IdeaPad 5 Pro 14ITL6 82L3 , Lenovo IdeaPad 5 Pro 16ACH6 82L5 , Lenovo IdeaPad 5 Pro 16IHU6 82L9 , Lenovo IdeaPad Creator 5 16ACH6 82L6 , Lenovo IdeaPad Flex 5 14ALC05 82HU , Lenovo IdeaPad Gaming 3 15IHU6 82K1, 82MG , Lenovo IdeaPad Slim 7 14ARE05 82A5 , Lenovo IdeaPad Slim 7 Carbon 14ACN6 82L1 , Lenovo ThinkBook 13x ITG 20WJ , Lenovo ThinkBook 16p G2 ACH 20YM , Lenovo ThinkBook Plus G2 ITG 20WH , Lenovo ThinkPad E14 Gen 3 20Y7, 20YD, 20YF , Lenovo ThinkPad E15 Gen 3 20YG, 20YH , Lenovo ThinkPad L13 Gen 2 21AB, 21AC , Lenovo ThinkPad L13 Yoga Gen 2 21AD, 21AE , Lenovo ThinkPad L14 Gen 2 20X5, 20X6 , Lenovo ThinkPad L15 Gen 2 20X4, 20X7, 20X8 , Lenovo ThinkPad P1 Gen 4 20Y3, 20Y4 , Lenovo ThinkPad P14s Gen 1 20Y2 , Lenovo ThinkPad P14s Gen 2 21A0, 21A1 , Lenovo ThinkPad P15s Gen 2 20W7 , Lenovo ThinkPad P15v Gen 2 21A9, 21AA , Lenovo ThinkPad T14 Gen 2 20W0, 20W1, 20XK, 20XL , Lenovo ThinkPad T14s Gen 2 20WM, 20WN, 20XF, 20XG , Lenovo ThinkPad T15 Gen 2 20W4, 20W5 , Lenovo ThinkPad T15p Gen 2 21A8 , Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX , Lenovo ThinkPad X1 Extreme Gen 4 20Y5, 20Y6 , Lenovo ThinkPad X1 Titanium Yoga Gen 1 20QB , Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0 , Lenovo ThinkPad X12 Detachable 20UV, 20UW , Lenovo ThinkPad X13 Gen 2 20WK, 20WL, 20XH, 20XJ , Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9 , Lenovo V14 G2 ALC 82KC , Lenovo V14 G2 IJL 82QX , Lenovo V14 G2 ITL 82NM , Lenovo V15 G2 IJL 82QY , Lenovo Yoga Duet 7 13ITL6 82MA , Lenovo Yoga Duet 7 13ITL6-LTE 82Q7 , Lenovo Yoga Slim 7 Carbon 14ACN6 82L0 , Lenovo Yoga Slim 7 Pro 14ACH5 OD 82NK , Lenovo Yoga Slim 7 Pro 14ARH5 82LA , Lenovo Yoga Slim 7 Pro 14IHU5 82NC , Lenovo Yoga Slim 7 Pro 16ACH6 82QQ
