Description

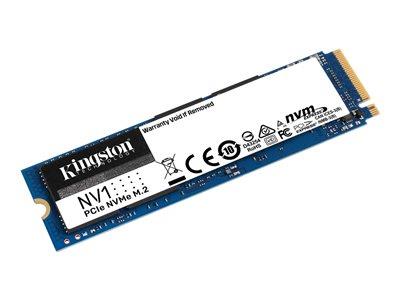

Kingston's NV1 NVMe PCIe SSD is a substantial storage solution that offers read/write speeds up to 2100/1700MB/s, which is 3 to 4 times faster than a SATA-based SSD, and 35 times faster than a traditional hard drive. NV1 works with lower power, lower heat, and quicker loading time. The efficient performance and single-sided M.2 2280 (22x80mm) design make NV1 ideal for thin notebooks and systems with limited space.
Highlights of the Kingston KTC 2TB NV1 M.2 2280 NVMe SSD
- Offers read/write speeds up to 2100/1700 MB/s
- Easily integrate into designs with M.2 connectors
- Perfect for thin laptops and small form factor PCs
Specifications
Summary
- Product Description
- Kingston - solid state drive - 2 TB - PCI Express 3.0 x4 (NVMe)
- Type
- Solid state drive - internal
- Capacity
- 2 TB
- Form Factor
- M.2 2280
- Interface
- PCI Express 3.0 x4 (NVMe)
- Features
- NVM Express (NVMe)
- Dimensions (WxDxH)
- 22 mm x 80 mm x 2.1 mm
- Weight
- 7 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 2 TB
- Form Factor
- M.2 2280
- Interface
- PCI Express 3.0 x4 (NVMe)
- Features
- NVM Express (NVMe)
- Width
- 22 mm
- Depth
- 80 mm
- Height
- 2.1 mm
- Weight
- 7 g
Performance
- SSD Endurance
- 480 TB
- Internal Data Rate
- 2100 MBps (read) / 1700 MBps (write)
Expansion & Connectivity
- Interfaces
- 1 x PCI Express 3.0 x4 (NVMe) - M.2 Card
- Compatible Bay
- M.2 2280
Power
- Power Consumption
- 5 mW (idle) , 340 mW (average) , 1.1 Watt (read) , 3.3 Watt (write)
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 85 °C
- Vibration Tolerance (operating)
- 2.17 g @ 7-800 Hz
- Vibration Tolerance (non-operating)
- 20 g @ 20-1000 Hz
