Description
1405 series switch is Plug-and-Play unmanaged fixed-port layer 2 switches designed for small offices. The switch is preconfigured for fast, easy installation, with connections using low-cost Ethernet copper cabling. It supports administration-friendly features such as auto-negotiation and automatic cable type detection (MDI/MDIX). It is fan less for quiet and "green" operation, and designed for high reliability, long life, low power consumption, and low total cost of ownership.

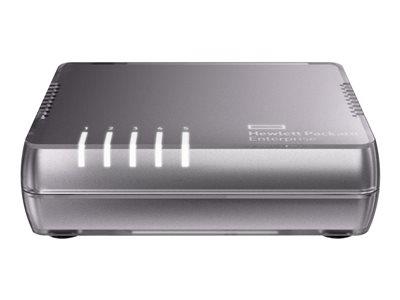

Highlights of the HPE OfficeConnect 1405 5G v3 Switch
- Traffic prioritization
- Class of Service (CoS)
- Auto-MDIX
- Flow control
- Comprehensive LED display with per-port indicators
- Fanless design
-
Traffic prioritization
Allows real-time traffic classification mapped to multiple hardware queues. -
Class of Service (CoS)
Prioritizes traffic by honoring Differentiated Services Code Point (DSCP). -
Auto-MDIX
Automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports. -
Flow control
Helps ensure reliable communications during full-duplex operation. -
Comprehensive LED display with per-port indicators
Provides an at-a-glance view of status, activity, speed, and full-duplex operation. -
Fanless design
Enables quiet operation for deployment in open spaces.
Specifications
Summary
- Product Description
- HPE OfficeConnect 1405 5G v3 - switch - 5 ports - unmanaged
- Device Type
- Switch - 5 ports - unmanaged
- Subtype
- Gigabit Ethernet
- Ports
- 5 x 10/100/1000
- Performance
- Switching capacity: 10 Gbps , Throughput: 7.4 Mpps , Latency (100 Mbps): 3 µs , Latency (1000Base-T): 2.6 µs
- MAC Address Table Size
- 2048 entries
- Jumbo Frame Support
- 9216 bytes
- Features
- Flow control, full duplex capability, Layer 2 switching, auto-uplink (auto MDI/MDI-X), half duplex mode, Quality of Service (QoS), fanless, Energy Efficient Ethernet, 1MB packet buffer, Class of Service (CoS), DiffServ Code Point (DSCP) support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 11.43 cm x 9.14 cm x 3.56 cm
- Weight
- 180 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Switch - 5 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 5 x 10/100/1000
- Performance
- Switching capacity: 10 Gbps , Throughput: 7.4 Mpps , Latency (100 Mbps): 3 µs , Latency (1000Base-T): 2.6 µs
- MAC Address Table Size
- 2048 entries
- Jumbo Frame Support
- 9216 bytes
- Features
- Flow control, full duplex capability, Layer 2 switching, auto-uplink (auto MDI/MDI-X), half duplex mode, Quality of Service (QoS), fanless, Energy Efficient Ethernet, 1MB packet buffer, Class of Service (CoS), DiffServ Code Point (DSCP) support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Expansion / Connectivity
- Interfaces
- 5 x 1000Base-T RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 3 Watt
Miscellaneous
- Compliant Standards
- Plug and Play, UL 60950, EN55022 Class B, ICES-003 Class B, RoHS, IEC 60950-1, EN 60950-1, WEEE, CAN/CSA C22.2 No. 60950-1-03, AS/NZS CISPR 22 Class B, FCC Part 15 Class B
Dimensions & Weight
- Width
- 11.43 cm
- Depth
- 9.14 cm
- Height
- 3.56 cm
- Weight
- 180 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 15 - 95% (non-condensing)
