Description

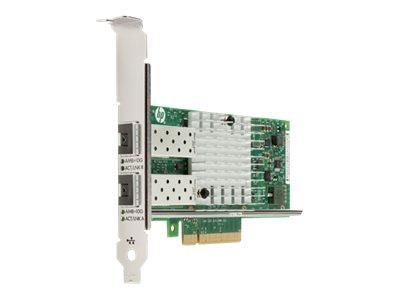

The HP X520 10GbE Dual Port Adapter is ideal for high performance workstation computing, workstation virtualization, security, consolidation, and other applications requiring the highest throughput.
Highlights of the HPE HP Intel X520 10GbE Dual Port Adapter
- Hardware acceleration TCP/IP/UDP stateless intelligent offloads
- Low profile design ships with standard height and low-profile brackets
- No firmware updates required -- less management and downtime
- Support for Preboot eXecution Environment (PXE), Jumbo Frames, Checksum & Segmentation Offload, IPv6 and RSS
- Up to 40Gb/s bi-directional near line rate throughput
Specifications
Summary
- Product Description
- Intel X520 - network adapter - PCIe 2.0 x8 - 2 ports
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.0 x8
- Ports Qty
- 2 ports
- Data Link Protocol
- 10 GigE
- Data Transfer Rate
- 10 Gbps
- Processor
- Intel
- Designed For
- Workstation Z220, Z230, Z420, Z620, Z820
Detailed Specification
General
- Device Type
- Network adapter - 2 ports
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.0 x8
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- 10 Gigabit Ethernet
- Data Transfer Rate
- 10 Gbps
- Features
- IPv6 support, Jumbo Frames support, PXE support, Receive Side Scaling (RSS), checksum offload support, Extended Message-Signaled Interrupts (MSI-X)
Processor / Memory
- Processor
- Intel
Expansion / Connectivity
- Interfaces
- 2 x network - SFP+
- Compatible Slots
- 1 x PCI Express 2.0 x8 - low-profile
Miscellaneous
- Included Accessories
- Low-profile bracket, full-height bracket
- Compliant Standards
- UL, VCCI, C-Tick, BSMI, KCC
Compatibility Information
- Designed For
- HP Workstation Z220, Z230, Z420, Z620, Z820
