Description

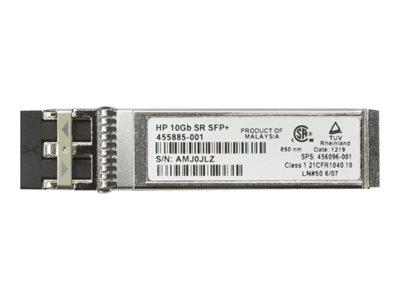

A 10-Gigabit transceiver in SFP+ form-factor that supports the 10-Gigabit SR standard, providing 10-Gigabit connectivity up to 300m on multimode fiber.
Highlights of the HPE HP Intel 10GbE SFP SR Tranceiver
- Connectivity: Connector Type: LC Wavelength: 850nm Form Factor: SFP+
- Ports: 1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-SR); Duplex: full only
Specifications
Summary
- Product Description
- Intel - SFP+ transceiver module - 10 GigE
- Device Type
- SFP+ transceiver module - LC
- Form Factor
- Plug-in module
- Cabling Type
- 10GBase-SR
- Data Transfer Rate
- 10 Gbps
- Optical Wave Length
- 850 nm
- Data Link Protocol
- 10 GigE
- Dimensions (WxDxH)
- 1.38 cm x 5.57 cm x 1.19 cm
- Designed For
- Workstation Z2 G4, Z2 G5, Z2 G8, Z220, Z230, Z420, Z620, Z820
Detailed Specification
General
- Device Type
- SFP+ transceiver module
- Form Factor
- Plug-in module
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 10GBase-SR
- Data Link Protocol
- 10 GigE
- Data Transfer Rate
- 10 Gbps
- Optical Wave Length
- 850 nm
- Compliant Standards
- IEEE 802.3ae
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 10GBase-SR - LC
- Compatible Slots
- 1 x SFP+
Dimensions & Weight
- Width
- 1.38 cm
- Depth
- 5.57 cm
- Height
- 1.19 cm
Compatibility Information
- Designed For
- HP Workstation Z2 G4, Z2 G5, Z2 G8, Z220, Z230, Z420, Z620, Z820
