Description
A secure and easy-to-use mounting solution for your VESA-compliant HP flat panel monitors, thin clients and other HP desktop products. Attach to any a compatible stand, bracket or wall mount and make the most of your workspace.

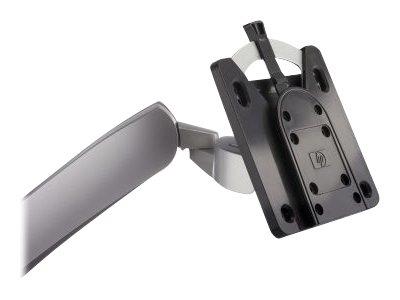

Highlights of the HP Quick Relase Bracket for TFT
- A range of unique positioning options provide a comfortable working environment and maximum desktop space
- Clean appearance for flat panel displays – ideal for storefronts, office reception areas, conferences and trade shows
- Convenient assembly – a failsafe "Sure-Lock" connector enables you to snap your monitor or mounted device securely in place (Sure-Lock not included)
- Medical/institutional settings: Securely mount monitors in nursing stations and public areas.
- Training labs: Mount a monitor directly on a 100 mm VESA-compatible PC or HP Compaq t5720 Thin Client for all-in-one convenience.
Specifications
Summary
- Product Description
- HP Quick Release - mounting kit - for LCD display / thin client
- Product Type
- Mounting kit
- Mounting Components
- Quick release bracket
- Dimensions (WxDxH)
- 13.2 cm x 1.65 cm x 16 cm
- Weight
- 370 g
- Recommended Use
- LCD display / thin client
- VESA Mounting Interface
- 100 x 100 mm
- Max Load Weight
- 10.9 kg
- Package Content
- 8 x 15.5 mm screws, 4 x 20 mm screws, 8 x 10 mm screws
- Manufacturer Warranty
- 1-year warranty
- Designed For
- HP 260 G2, Elite 8300, t430, t530, t5545, t628; Chromebox G2; EliteDesk 705 G3; EliteOne 800 G1, 800 G3, 800 G5; Flexible t520, t610; ProDesk 400 G3; ProOne 400 G2, 600 G1; RP9 G1 Retail System; Smart t410; Thin Client t5730; HPE t5145, t5540; Compaq Thin Client t5735; Flexible Thin Client t510
Detailed Specification
General
- Width
- 13.2 cm
- Depth
- 1.65 cm
- Height
- 16 cm
- Weight
- 370 g
- Package Content
- 8 x 15.5 mm screws, 4 x 20 mm screws, 8 x 10 mm screws
AV Furniture
- Type
- Mounting kit
- Mounting Components
- Quick release bracket
- Recommended Use
- LCD display / thin client
- VESA Mounting Interface
- 100 x 100 mm
- Max Load Weight
- 10.9 kg
Dimensions & Weight Details
- Shipping Dimensions (WxDxH) / Weight
- 19.8 cm x 15.9 cm x 3.8 cm / 490 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Compatibility Information
- Designed For
- Compaq LA2405wg, S1921, S1922, S2021 , HP 2310ti, 260 G2, gt7720, gt7725, L1506, L1506s, L1706, L1706v, L1710, L1740, L1750, L1906, L1908w, L1908wm, L1910, L1940T, L1945w, L1945wv, L1950, L1950g, L2045w, L2105tm Touchscreen, L2208w, L2245w, L2245wg, L2445w, LA1905wg, LA2205wg, LE1851w, LE1901w, LE1901wm, LE2001w, LE2001wm, LE2201w, S1932, S1933, S2021, S2031, S2032, S2231a, S2331a, t430, t530, t5325, t5545, t5550, t5565, t5570, t5630, t5630w, t5740, t5740e, t5745, t628, v185w, v185ws, v216w, vc4820T, vc4825T, w17e, ZR30w , HP Chromebox G2 , HP EliteDesk 705 G3 (mini desktop) , HP EliteOne 800 G1, 800 G3, 800 G5 , HP Flexible t520, t610, t610 PLUS , HP ProDesk 400 G3 , HP ProOne 400 G2, 600 G1 , HP RP9 G1 Retail System 9118 , HP Smart t410 , HP Streaming Client st5548, st5738, st5742, st5747, st5748 , HP Compaq 6005 Pro (ultra-slim desktop), 6300 Pro PC, Elite 8300 PC, L2105tm, LA1751g, LA1905wg, LA1951G, LA2205wg, LA22f, LA2405wg, LE1711, LE1911, LE19f, s1922, S2021 , HP Compaq Business Desktop dx2009 , HP Compaq Thin Client t5135, t5530, t5720, t5725, t5730, t5730w , HPE t5145, t5540 , HPE Compaq Thin Client t5735 , HPE Flexible Thin Client t510
