Description
2D bar code is becoming increasingly popular across a wide range of industries for a number of reasons. Some enterprises have a desire to capture large amounts of data, despite space constraints, while others are being required to read 2D bar code due to government regulations or supplier mandates. And an even larger group of enterprises simply have the desire to leverage emerging trends that require area-imaging technology, today or in the future, without needing to purchase additional scanning hardware.

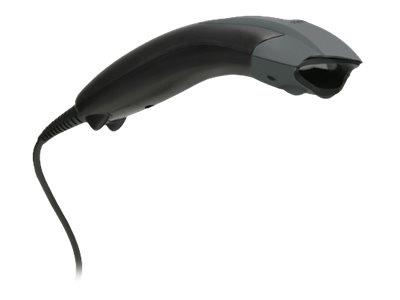

Highlights of the Honeywell Voyager 1400G Barcode Scanner
- Reliable data collection - offers omnidirectional reading of virtually all linear bar codes and the most widely used 2D bar codes, including poor quality and mobile bar codes
- Remote MasterMind ready - reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices
- Future proof - delivers affordable scanning of 2D bar codes, allowing enterprises to meet their current and future bar code scanning needs with a single device
Specifications
Summary
- Product Description
- Honeywell Voyager 1400g2D - barcode scanner
- Type
- Barcode scanner - handheld - USB - decoded
- Colour
- Black
- Scan Field Width
- 35 cm
- Scan Element Type
- 2D imager
- Connectivity Technology
- Wired
- Dimensions (WxDxH)
- 18 cm x 4.3 cm x 6.6 cm
- Weight
- 119 g
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Type
- Barcode scanner - handheld
- Colour
- Black
Barcode
- Interface Type
- USB
- Scan Field Width
- 35 cm
- Scan Element Type
- 2D imager
- Scan Mode
- Single-pass
- Skew (Degrees)
- 70
- Pitch (Degrees)
- 60
- Print Contrast Signal (PCS)
- 35%
- Decode Capability
- EAN/JAN, Code 93, Matrix 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, Aztec code, MicroPDF417, Codabar, Code 128, Code 2 of 5, UPC, Interleaved 2 of 5, PDF417, Data Matrix, China Post, Codablock F, EAN-UCC Composite, MSI-3, Micro QR code, Code 93i, China Han Xin Code
- TTL Decoding
- Decoded
- Connectivity Technology
- Wired
- OK Notification
- Beeper, LED indicator
- Features
- Reduced Space Symbology (RSS), ESD (electrostatic discharge) safe
Expansion / Connectivity
- Interfaces
- 1 x USB - Type A
Miscellaneous
- Cables Included
- 1 x USB cable - 1.5 m
- Compliant Standards
- FCC Class B certified, C-Tick, GS, ICES-003, RoHS, UL 60950-1 Second Edition, WEEE, cULus, IP42, IEC 60950-1 Second Edition
Power
- Power Consumption Operational
- 2 Watt
- Electric Current Required
- 400 mA (operating), 90 mA (standby)
Software
- Software Included
- MasterMind
Dimensions & Weight
- Width
- 18 cm
- Depth
- 4.3 cm
- Height
- 6.6 cm
- Weight
- 119 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95% (non-condensing)
- Drop Specification
- 1.5 m to concrete
