Description
The Eaton ePDU third generation (G3) Managed models build on Eaton’s existing state-of-the-art ePDU G3 technology while offering new capabilities for rack power distribution in data centers and information technology (IT) applications. You now have comprehensive management and monitoring capabilities down to the outlet level. This new level of precision saves time, saves money and avoids risk, making the ePDU G3 Managed the gold standard in power management.

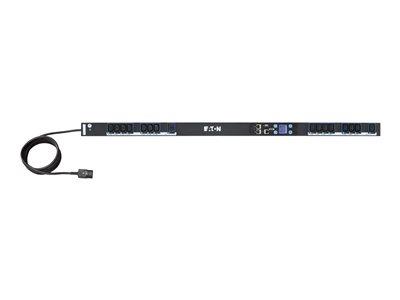

Highlights of the Eaton ePDU MA 0U (C14 10A 1P) 16XC13
- Portfolio of 120V and lower power ratings (kVA)
- Reboot devices without local IT staff assistance
- Control unused outlets to prevent unauthorized use
- LCD pixel menu display simplifies setup
- Up to 208V three phase 17kW for high density applications
- Network monitoring of power usage and capacity at the outlet level
- Save time by rebooting devices from the operations center
- Measure power for Level 3 PUE
Specifications
Summary
- Product Description
- Eaton ePDU G3 Managed - power distribution unit
- Device Type
- Power distribution unit - rack-mountable
- Rack Size
- 0U
- Input Connectors
- 1 x power IEC 60320 C14
- Output connectors
- 16 x power IEC 60320 C13
- Networking
- Ethernet 10/100, RS-232
- Dimensions (WxDxH)
- 5.2 cm x 5.3 cm x 115.4 cm
Detailed Specification
General
- Device Type
- Power distribution unit - rack-mountable
- Height (Rack Units)
- 0U
Power Device
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 16 x power IEC 60320 C13
Networking
- Remote Management Interface
- Ethernet 10/100, RS-232
Expansion / Connectivity
- Interfaces
- 1 x management (Ethernet) - RJ-45 , 1 x management (RS-232) - RJ-45 , 1 x cascading - RJ-45 , 1 x USB - 4 pin USB Type A
Miscellaneous
- Cables Included
- Power cable - integrated
- Features
- LCD display, voltage monitoring, current meter, vertical orientation, firmware upgradable
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
Dimensions & Weight
- Width
- 5.2 cm
- Depth
- 5.3 cm
- Height
- 115.4 cm
