Description
As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse Eco also provides effective protection against damaging surges. The Eco Control function automatically disables peripherals when the master device is turned off in order to save up 25 % more energy compared to previous generation of UPS. This unit can either be placed horizontally, 19 inch rack mounted or wall mounted. The Ellipse Eco also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.
Highlights of the Eaton Ellipse ECO 500 IEC UPS
- Ellipse ECO - Power : 500 VA / 300 watts

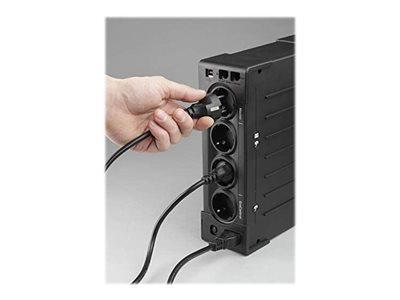

- 4 IEC output sockets : 3 sockets with autonomy and surge arrester + 1 socket with surge arrester only - Protection phone / fax / modem / network 10/100 (RJ45)
- Autonomy standard 10 minutes
- Inverter without fan, silent power surge protector (except audible alarm in case of event)
- Extra flat design for easy installation whatever the environment: vertically under a desk,
- or horizontally under the screen
- 2 years Warranty
Specifications
Summary
- Product Description
- Eaton Ellipse ECO 500 IEC - UPS - 300 Watt - 500 VA
- Device Type
- UPS - rack-mountable / external
- Rack Size
- 19" - 2U
- Weight
- 2.9 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 220/230/240 V
- Power Capacity
- 300 Watt / 500 VA
- Input Connectors
- 1 x power
- Output connectors
- 3 x power IEC 60320 (UPS and surge) , 1 x power IEC 60320 (surge)
- Battery
- Lead Acid
- Run Time (Up To)
- 9 min at half load
- Dimensions (WxDxH)
- 8.1 cm x 23.5 cm x 26.3 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- UPS - rack-mountable / external
- Height (Rack Units)
- 2U
- Rack Size
- 19"
Power Device
- UPS Technology
- Off-line
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 184 - 264 V
- Input Voltage Range (Adjustable)
- AC 161 - 284 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power
- Power Output Connectors Details
- 3 x power IEC 60320 (UPS and surge) , 1 x power IEC 60320 (surge)
- Output Voltage
- AC 220/230/240 V 50/60 Hz
- Power Capacity
- 300 Watt / 500 VA
- Dataline Surge Protection
- Network/phone line - RJ-45/RJ-11
- Surge Suppression
- Yes
- Circuit Protection
- Circuit breaker
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 9 min at half load , 5 min at 70% load
Miscellaneous
- Rack Mounting Kit
- Optional
- Features
- Wall mountable, audible alarm, LED indicators, deep discharge protection, cold-start function
- Compliant Standards
- CB, IEC 62040-1-1, IEC 62040-2, IEC 60950-1, IEC 61643-1
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Dimensions & Weight
- Width
- 8.1 cm
- Depth
- 23.5 cm
- Height
- 26.3 cm
- Weight
- 2.9 kg
