Description

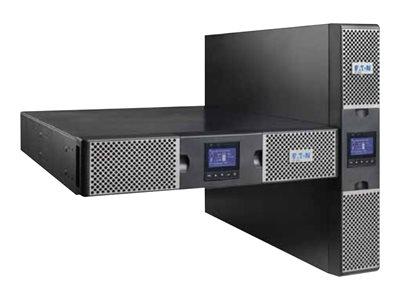

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Highlights of the Eaton 9PX 3000i RT2U Netpack
- Double conversion topology
- Constantly monitors power conditions and regulates voltage and frequency
- First UPS in its class to provide Unity power factor (VA=W)
- Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
- Internal bypass allows service continuity in case of UPS fault
- Next-generation graphical LCD display
- Network card and rackmounting kit delivered as standard
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- Meter energy consumption (down to the managed outlet groups)
- Hot swappable batteries
- Advanced Battery Management (ABM) technology to increase battery lifetime
- Warranty: 3 years on electronics, 2 years on battery
-
Graphical LCD display
It provides clear information on the UPS's status and measurements on a single screen which tilts 450 for ease-of-viewing. -
Availability and flexibility
The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS without powering down critical systems. -
Paralleling functionality
Paralleling functionality to achieve twice the power of unitary products using Hot Sync technology! -
Load segment control
It enables prioritized shut downs of nonessential equipment to maximize battery runtime for critical devices.
Specifications
Summary
- Product Description
- Eaton 9PX 3000i RT2U Netpack - UPS - 3000 Watt - 3000 VA
- Device Type
- UPS - Power Factor Correction (PFC) - rack-mountable / external
- Rack Size
- 2U
- Weight
- 27.6 kg
- Input Wiring
- 1-phase
- Input Voltage
- AC 200/208/220/230/240 V
- Output Voltage
- AC 200/208/220/230/240 V
- Power Capacity
- 3000 Watt / 3000 VA
- Input Connectors
- 1
- Output connectors
- 8 x power IEC 60320 C13 , 2 x power IEC 60320 C19 16A
- Networking
- RS-232, USB, Ethernet 10/100/1000
- Dimensions (WxDxH)
- 44 cm x 60.5 cm x 8.65 cm
- Environmental Standards
- ENERGY STAR
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- UPS - Power Factor Correction (PFC) - rack-mountable / external
- Height (Rack Units)
- 2U
Power Device
- UPS Technology
- On-line
- Input Voltage
- AC 200/208/220/230/240 V
- Input Voltage Range
- AC 176 - 276 V
- Input Wiring
- 1-phase
- Frequency Required
- 40 - 70 Hz
- Input Connectors
- 1
- Power Output Connectors Details
- 8 x power IEC 60320 C13 , 2 x power IEC 60320 C19 16A
- Output Voltage
- AC 200/208/220/230/240 V
- Power Capacity
- 3000 Watt / 3000 VA
- Efficiency
- 98%
Battery
- Run Time (Up To)
- 60 min at 300 Watts , 36 min at 500 Watts , 23 min at 800 Watts , 13 min at 1200 Watts , 7 min at 1800 Watts , 4 min at 2500 Watts
Networking
- Remote Management Interface
- RS-232, USB, Ethernet 10/100/1000
Expansion / Connectivity
- Interfaces
- 1 x management (USB) , 1 x management (RS-232) , 1 x management (Gigabit Ethernet) - RJ-45
- Expansion Slots
- 1 (total) / 0 (free) x Expansion Slot
Miscellaneous
- Features
- LCD display, internal bypass
- Compliant Standards
- FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1
Software / System Requirements
- Software Included
- Intelligent Power Software Suite
Environmental Standards
- ENERGY STAR
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - batteries - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Sound Emission
- 40 dB
Dimensions & Weight
- Width
- 44 cm
- Depth
- 60.5 cm
- Height
- 8.65 cm
- Weight
- 27.6 kg
