Description
Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. It includes a LCD interface for real time status and measurement. This unit also possesses the Advanced Battery Management (ABM) technology that increases battery lifetime. It is line interactive with Automatic Voltage Regulation (AVR). With its 6 IEC outputs and compact design the 5SC fits anywhere easily.

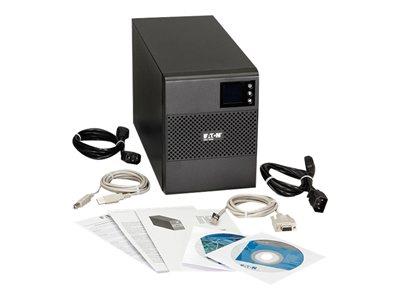

Highlights of the Eaton 5SC 750i 750 VA / 525 Watts - 6 x IEC C13
- 6 IEC outputs
- Tower model for easy integration in space constraints environement (kiosks, cash machines, ticket machines etc.).
- LCD interface shows clear status of the UPS key parameters such as input and output voltage, load and battery level, and estimated runtime.
- Wide communication capabilities : The 5SC offers USB and serial connectivity that are HID compliant for automatic integration into major OS.
- 1 USB port & 1 Serial + contact port for compatibility with existing or future hardware; 1 Slot for optional communication card (Modbus-MS only)
- Reliable, long-lasting UPS with patented ABM technology that increases battery service life by up to 50%
- Line interactive UPS with Automatic Voltage Regulation (AVR) for reliable protection for small business servers
- A 2- year standard warranty of the product, batteries included
Specifications
Summary
- Product Description
- Eaton 5SC 750i - UPS - 525 Watt - 750 VA
- Device Type
- UPS - external
- Weight
- 10.4 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V + 6% / - 10%
- Power Capacity
- 525 Watt / 750 VA
- Input Connectors
- 1 x power IEC 60320 C14
- Output connectors
- 6 x power IEC 60320 C13
- Run Time (Up To)
- 5 min at full load
- Networking
- RS-232, USB
- Colour
- Black
- Dimensions (WxDxH)
- 15 cm x 34 cm x 21 cm
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- UPS - external
- Colour
- Black
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 184 - 276 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 6 x power IEC 60320 C13
- Output Voltage
- AC 230 V + 6% / - 10% - 50/60 Hz
- Power Capacity
- 525 Watt / 750 VA
- Output Waveform
- Sinewave
Battery
- Run Time (Up To)
- 5 min at full load , 13 min at half load , 9 min at 70% load
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x management (USB) - 4 pin USB Type B , 1 x management (RS-232) - 9 pin D-Sub (DB-9)
Miscellaneous
- Features
- Advance Battery Management (ABM), LCD display, deep discharge protection
- Compliant Standards
- UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - batteries - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 35 °C
- Sound Emission
- 40 dB
Dimensions & Weight
- Width
- 15 cm
- Depth
- 34 cm
- Height
- 21 cm
- Weight
- 10.4 kg
