Description

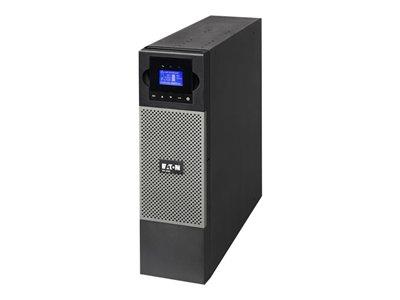

The Eaton 5PX Rack Tower UPS provides line interactive backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. With a next-generation intuitive LCD display, energy consumption metering down to the outlet group level, and up to 99% efficiency, the 5PX is the perfect UPS to protect modern IT equipment.
Highlights of the Eaton 5PX 3000VA LCD Interactive Rack/Tower IEC UPS
- 8IEC outlets (10A) including 4 remotely manageable outlets + 1IEC outletC19 (16A) ;
- *Versatile product (R/T model): Rack installation 3U with cable locking system AND Tower installation are possible.
- Energy efficient UPS with up to 98% efficiency
- Modern multilingual LCD display ;
- *Energy metering down to the outlet group level
- Compatibility with power factor corrected power supplies (ratio W/VA=0,9)
- Remote reboot and runtime optimization thanks to 4 programmable outlets (2 x 2 oulet groups)
- Networking: 1 USB port & 1 Serial + contact port for compatibility with existing or future hardware;
- * 1 Slot for optional communication card (Network Management card or Relay MS or Modbus-MS)
- Monitoring & shutdown software for VMware, Hyper-V, Windows, Linux, SUN Solaris, HP-UX, IBM AIX
- *Connector for Remote power off or remote ON/OFF function
- Advance Battery Management (ABM) technology to increase battery lifetime;
- *Hot swappable batteries from front panel
- Long backup time with up to 4 optional EBM cabinets
- A standard 3-year all inclusive warranty
-
Efficiency
The Eaton 5PX provides industry leading efficiency of up to 99 percent. -
Energy metering
The 5PX meters energy consumption right down to the outlet segments. No other UPS in the industry offers this capability. -
UPS management
By integrating Eaton's free Intelligent Power Software Suite, you can monitor and manage the power devices on your network. -
LCD display
Eaton's next generation LCD offers a graphical interface which provides all critical UPS information in a single screen view. The user friendly menu allows you to view information and control settings at the push of a button. -
More power
The 5PX protects more devices by providing 28 percent more wattage compared to traditional UPSs. -
Battery life
Eaton's exclusive ABM technology increases battery service life by 50 percent. ABM uses an advanced, three-stage charging technique and closely monitors battery health to provide advanced notice when batteries need replacement.
Specifications
Summary
- Product Description
- Eaton 5PX 3000 3U Rack/Tower LCD - UPS - 2700 Watt - 3000 VA
- Device Type
- UPS - rack-mountable / external
- Rack Size
- 3U
- Weight
- 37.3 kg
- Output Voltage
- AC 200/208/220/230/240 V
- Power Capacity
- 2700 Watt / 3000 VA
- Input Connectors
- 1 x power IEC 60320 C20
- Output connectors
- 8 x power IEC 60320 C13 , 1 x power IEC 60320 C19
- Battery Form Factor
- Plug-in module
- Run Time (Up To)
- 4 min at full load
- Networking
- RS-232, USB
- Colour
- Black
- Dimensions (WxDxH)
- 44.1 cm x 49.7 cm x 13.1 cm
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- UPS - rack-mountable / external
- Battery Enclosure Type
- Plug-in module
- Height (Rack Units)
- 3U
- Colour
- Black
Power Device
- UPS Technology
- Line interactive
- Input Voltage Range
- AC 160 - 294 V
- Input Voltage Range (Adjustable)
- AC 150 - 294 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 47 - 70 Hz
- Input Connectors
- 1 x power IEC 60320 C20
- Power Output Connectors Details
- 8 x power IEC 60320 C13 , 1 x power IEC 60320 C19
- Output Voltage
- AC 200/208/220/230/240 V 50/60 Hz
- Power Capacity
- 2700 Watt / 3000 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x RS-232 - RJ-45 , 1 x USB - 4 pin USB Type B , 1 x management
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
Miscellaneous
- Rack Mounting Kit
- Included
- Features
- Advance Battery Management (ABM), LCD display
- Compliant Standards
- TUV, C-Tick, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - batteries - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Sound Emission
- 50 dBA
Dimensions & Weight
- Width
- 44.1 cm
- Depth
- 49.7 cm
- Height
- 13.1 cm
- Weight
- 37.3 kg
