Description
Marketing description is not available.

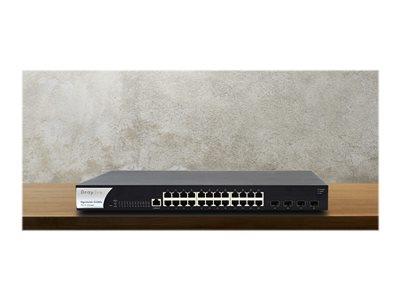

Highlights of the DrayTek VigorSwitch VSG2280X-K Managed Gigabit Switch
- Auto surveillance & voice VLAN
- Web-based GUI
- IP conflict prevention
- Central switch management
-
Auto surveillance & voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. -
Web-based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. -
IP conflict prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. -
Central switch management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
Specifications
Summary
- Product Description
- Draytek VigorSwitch G2280X - switch - 28 ports - Managed - rack-mountable
- Device Type
- Switch - 28 ports - L2+ - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
- Performance
- Switching capacity: 128 Gbps , Buffer memory: 12 Mbit , Forwarding rate: 95.24 Mpps
- Capacity
- Multicast groups: 256 , Total link aggregation groups: 8
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 12KB
- Routing Protocol
- IGMPv2, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
- Features
- Flow control, auto-negotiation, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Multicast VLAN Registration (MVR), loop prevention, port isolation, Class of Service (CoS), Strict Priority (SP), IP source guard, Link Aggregation, Voice VLAN, protected ports, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), DSCP based CoS, Q-in-Q tunnelling
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44.1 cm x 27 cm x 4.5 cm
- Weight
- 2.48 kg
- Localisation
- United Kingdom
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Switch - 28 ports - L2+ - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
- Performance
- Switching capacity: 128 Gbps , Buffer memory: 12 Mbit , Forwarding rate: 95.24 Mpps
- Capacity
- Multicast groups: 256 , Total link aggregation groups: 8
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 12KB
- Routing Protocol
- IGMPv2, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
- Authentication Method
- RADIUS, TACACS+, internal user database
- Features
- Flow control, auto-negotiation, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Multicast VLAN Registration (MVR), loop prevention, port isolation, Class of Service (CoS), Strict Priority (SP), IP source guard, Link Aggregation, Voice VLAN, protected ports, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), DSCP based CoS, Q-in-Q tunnelling
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 , 4 x 10Gbit LAN SFP+ uplink , 1 x console RJ-45 management
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 25 Watt
Miscellaneous
- Cables Included
- 1 x console cable
- Rack Mounting Kit
- Included
- Compliant Standards
- RoHS
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 44.1 cm
- Depth
- 27 cm
- Height
- 4.5 cm
- Weight
- 2.48 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
