Description
Marketing description is not available.

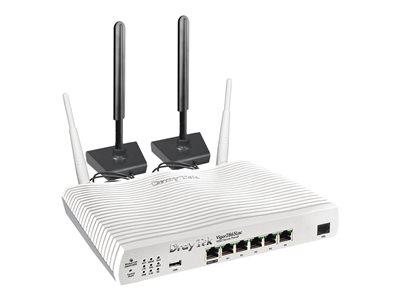

Highlights of the DrayTek Vigor 2865LAC LTE WLAN Router
- SIM-base, 3G/4G LTE router, CAT 6 up to 300Mpbs connection speed
- Supports VDSL2 35b Super Vectoring/ADSL2+
- 1 USB port for 3G/4G modem or extra storage
- 32 simultaneous VPN tunnels
- SPI Firewall with Content Filtering
- Central Management for VigorAP and VigorSwitch
- Supports DrayDDNS
Specifications
Summary
- Product Description
- Draytek Vigor 2865Lac - router - DSL/WWAN - 802.11a/b/g/n/ac Wave 2 - desktop
- Device Type
- Router - DSL modem / wireless cellular modem - 6-port switch (integrated)
- Enclosure Type
- Desktop
- Digital Signaling Protocol
- ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
- Mobile Communication Protocol
- LTE
- WAN Ports Qty
- 2
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz / 5 GHz
- Capacity
- Concurrent VPN tunnels: 32 , NAT sessions: 50000 , Concurrent SSL VPN tunnels: 16
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, ARP, FTP, DHCP, DNS, Bonjour, SMB, DDNS, DHCPv6, RTSP, IPv4, IPv6
- Routing Protocol
- RIP, BGP, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, TR-069
- VoIP Protocols
- H.323, SIP
- Features
- Firewall protection, load balancing, IGMP snooping, Syslog support, DoS attack prevention, content filtering, ALG support, port mirroring, E-mail alert, IPv6 support, VPN passthrough, High Availability, Wireless Distribution System (WDS) support, URL filtering, firmware upgradable, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), Wi-Fi Protected Setup (WPS), IPSec passthrough, DHCP server, SMS alert, hidden SSID, reset button, bandwidth control, IPv4 support, DNS server, port triggering, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, application filtering, IGMP proxy, 802.1x authentication, Type of Service (ToS), Push Button Configuration (PBC), L2TP passthrough, band steering, WDS bridge, Web Filtering, IGMP fast leave, Airtime Fairness, 2x2 MU-MIMO technology, L2TP over IPSec, client isolation, DMZ support, VLAN Tagging, port-based VLAN, port-based QoS, WDS repeater mode, multiple PVC support, broadcast threshold, DNS filtering, 2x2 MIMO technology, DNSSEC support, WLAN scheduling, DSCP based QoS, Brute Force Protection
- Compliant Standards
- IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.1x, UPnP
- Dimensions (WxDxH)
- 24.1 cm x 16.6 cm x 4.6 cm
- Localisation
- United Kingdom, Ireland
Detailed Specification
General
- Device Type
- Router - 6-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz / 5 GHz
- Capacity
- Concurrent VPN tunnels: 32 , NAT sessions: 50000 , Concurrent SSL VPN tunnels: 16
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, ARP, FTP, DHCP, DNS, Bonjour, SMB, DDNS, DHCPv6, RTSP, IPv4, IPv6
- Routing Protocol
- RIP, BGP, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, TR-069
- Encryption Algorithm
- DES, Triple DES, MPPE, AES, SSL, SHA-1, WPA, WPA2, IKEv2, 256-bit SHA, WEP
- Authentication Method
- RADIUS, X.509 certificates, TACACS+, LDAP, internal user database, XAUTH authentication
- Features
- Firewall protection, load balancing, IGMP snooping, Syslog support, DoS attack prevention, content filtering, ALG support, port mirroring, E-mail alert, IPv6 support, VPN passthrough, High Availability, Wireless Distribution System (WDS) support, URL filtering, firmware upgradable, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), Wi-Fi Protected Setup (WPS), IPSec passthrough, DHCP server, SMS alert, hidden SSID, reset button, bandwidth control, IPv4 support, DNS server, port triggering, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, application filtering, IGMP proxy, 802.1x authentication, Type of Service (ToS), Push Button Configuration (PBC), L2TP passthrough, band steering, WDS bridge, Web Filtering, IGMP fast leave, Airtime Fairness, 2x2 MU-MIMO technology, L2TP over IPSec, client isolation, DMZ support, VLAN Tagging, port-based VLAN, port-based QoS, WDS repeater mode, multiple PVC support, broadcast threshold, DNS filtering, 2x2 MIMO technology, DNSSEC support, WLAN scheduling, DSCP based QoS, Brute Force Protection
- Compliant Standards
- IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.1x, UPnP
- Status Indicators
- WAN, DMZ, link/activity, USB, DSL, 5 GHz, 2.4 GHz, QoS
Line Properties
- Framing Format
- ANSI T1.413
Communications
- Type
- DSL modem / wireless cellular modem
- Digital Signaling Protocol
- ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
- Mobile Communication Protocol
- LTE
- Protocols & Specifications
- ITU G.992.1 (G.DMT), ITU G.992.5, ITU G.993.2, ITU G.993.5, ITU G.992.3
- Max Transfer Rate
- 300 Mbps
IP Telephony
- VoIP Protocols
- H.323, SIP
Expansion / Connectivity
- Interfaces
- LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x VDSL2 / ADSL2+ - RJ-11 , USB 2.0: 2 x 4 pin USB Type A
- Expansion Slots
- 2 SIM
Aerial
- Aerial
- External detachable
- Antenna Qty
- 2
Power
- Power Device
- External power adapter
Miscellaneous
- Cables Included
- 1 x modem cable
- Localisation
- United Kingdom, Ireland
Dimensions & Weight
- Width
- 24.1 cm
- Depth
- 16.6 cm
- Height
- 4.6 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
