Product Description

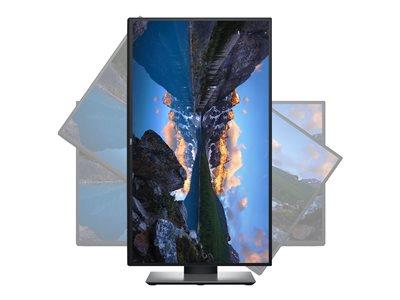

Dell UltraSharp U2520D - LED monitor - 25"

Device Type

LED-backlit LCD monitor - 25"

Energy Class

Class F

Power Consumption (On mode)

22 W

Features

USB PD 90 Watt

Panel Type

IPS

Aspect Ratio

16:9

Native Resolution

QHD 2560 x 1440 at 60 Hz

Pixel Pitch

0.216 mm

Brightness

350 cd/m²

Contrast Ratio

1000:1

Response Time

8 ms (grey-to-grey normal); 5 ms (grey-to-grey fast)

Colour Support

16.8 million colours

Colour Gamut

95% DCI-P3, 99% Rec 709, 99% sRGB

Input Connectors

HDMI, DisplayPort, USB-C

Display Position Adjustments

Height, pivot (rotation), swivel, tilt

Screen Coating

Anti-glare, 3H Hard Coating

Voltage

AC 120/230 V (50/60 Hz)

Dimensions (WxDxH) - with stand

56.77 cm x 18.5 cm x 38.29 cm

Weight

6.4 kg

Environmental Standards

TCO Certified Displays 8, ENERGY STAR Qualified

Compliant Standards

RoHS, BFR-free, PVC-free, Mercury-free

Bundled Services

3 years Advanced Exchange Service

Designed For

Latitude 5320, 5520; Precision 7560; XPS 13 9310, 15 9510

General

Display Type

LED-backlit LCD monitor / TFT active matrix

Energy Class

Class F

Energy Class (HDR)

Class E

Diagonal Size

25"

Viewable Size

25"

USB Power Delivery

90 Watt

Panel Type

IPS

Aspect Ratio

16:9

Native Resolution

QHD 2560 x 1440 at 60 Hz

Pixel Pitch

0.216 mm

Pixel Per Inch

117.5

Brightness

350 cd/m²

Contrast Ratio

1000:1

Colour Support

16.8 million colours

Colour Gamut

95% DCI-P3, 99% Rec 709, 99% sRGB

Response Time

8 ms (grey-to-grey normal); 5 ms (grey-to-grey fast)

Horizontal Viewing Angle

178

Vertical Viewing Angle

178

Screen Coating

Anti-glare, 3H Hard Coating

Backlight Technology

WLED

Features

LED edgelight system, Delta E<2 calibration, 99% sRGB colour gamut

Dimensions (WxDxH)

56.77 cm x 18.5 cm x 38.29 cm - with stand

Weight

6.4 kg

Connectivity

Interfaces

DisplayPort 1.4 , DisplayPort output (MST) , HDMI , USB-C (power up to 90W) , 2 x USB 3.0 downstream , USB 3.0 downstream with Battery Charging 1.2 , USB-C downstream , Audio line-out

Mechanical

Display Position Adjustments

Height, pivot (rotation), swivel, tilt

Tilt Angle

-5/+21

Swivel Angle

90

Rotation Angle

180

Height Adjustment

130 mm

VESA Mounting Interface

100 x 100 mm

Miscellaneous

Features

Security lock slot (cable lock sold separately), VESA interface support, anti-theft protection

Cables Included

1 x USB-C cable , 1 x HDMI cable , 1 x USB-C to USB-A cable

Compliant Standards

RoHS, BFR-free, PVC-free, Mercury-free

Power

Input Voltage

AC 120/230 V (50/60 Hz)

Power Consumption (On mode)

22 W

Power Consumption SDR (On mode)

22 kWh/1000h

Power Consumption HDR (On mode)

16.1 kWh/1000h

Power Consumption (Typical)

24 Watt

Power Consumption Stand by

0.3 Watt

Power Consumption Sleep

0.3 Watt

Software / System Requirements

Included Software

Dell Display Manager

Dimensions & Weight

Dimensions & Weight Details

With stand - width: 56.77 cm - depth: 18.5 cm - height: 38.29 cm - weight: 6.4 kg , Without stand - width: 56.77 cm - depth: 4.99 cm - height: 33.21 cm - weight: 4.2 kg

Dimensions & Weight (Shipping)

Shipping Weight

8.8 kg

Environmental Standards

TCO Certified

TCO Certified Displays 8

ENERGY STAR Certified

Yes

Manufacturer Warranty

Bundled Services

3 years Advanced Exchange Service

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 80% (non-condensing)

Compatibility Information

Designed For

Dell Latitude 5320, 5520 , Dell Precision 7560 , Dell XPS 13 9310, 15 9510
