Description

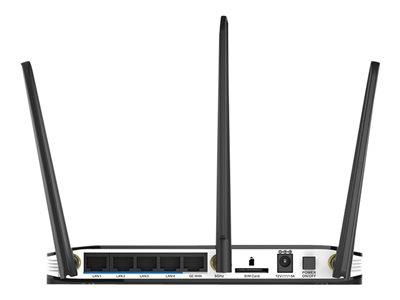

D-Link's DWR-953 Wireless AC750 4G LTE Router allows you to access and share your super-fast 4G LTE mobile broadband with multiple devices. Once connected, you can transfer data, stream media, and send SMS messages. Simply insert your SIM card and share your 4G LTE Internet connection through a secure wireless network or by using any of the four Fast Ethernet LAN ports. Simultaneous 4G LTE/3G mobile Internet and fixed broadband Internet support allows you to combine Internet connections to give you faster Internet speeds. You can also set up fail-safe Internet should either connections fail.
Highlights of the D-Link Wireless 4G router - WWAN - 4 port switch - 802.11b/g/n/ac
- Simply insert your 4G-enable SIM card to share high-speed mobile Internet with multiple devices via Wi-Fi or Ethernet cables
- Enjoy combined Wi-Fi speeds of up to 733 Mbps with dual-band technology, so you can share files faster
- Load sharing and fail-safe Internet with concurrent fixed line and mobile Internet support
Specifications
Summary
- Product Description
- D-Link DWR-953 - wireless router - WWAN - 802.11a/b/g/n/ac - desktop
- Device Type
- Wireless router - wireless cellular modem - 4-port switch (integrated)
- Enclosure Type
- Desktop
- Mobile Communication Protocol
- GSM, GPRS, UMTS, EDGE, HSPA, HSPA+, DC-HSPA+, FDD LTE, TDD LTE
- WAN Ports Qty
- 1
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Frequency Band
- 2.4 GHz / 5 GHz
- Features
- NAT support, Stateful Packet Inspection (SPI), Wi-Fi Protected Setup (WPS), reset button
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Dimensions (WxDxH)
- 17 cm x 18 cm x 8 cm
- Weight
- 400 g
Detailed Specification
General
- Device Type
- Wireless router - 4-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Frequency Band
- 2.4 GHz / 5 GHz
- Encryption Algorithm
- 128-bit WEP, 64-bit WEP, WPA, WPA2
- Wi-Fi Rating
- AC1200
- Features
- NAT support, Stateful Packet Inspection (SPI), Wi-Fi Protected Setup (WPS), reset button
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Status Indicators
- Power, signal strength, WAN, LAN, 3G, SMS, Internet, 4G, 2.4/5 GHz, 2G
Communications
- Type
- Wireless cellular modem
- Mobile Communication Protocol
- GSM, GPRS, UMTS, EDGE, HSPA, HSPA+, DC-HSPA+, FDD LTE, TDD LTE
- Max Transfer Rate
- 150 Mbps
Expansion / Connectivity
- Interfaces
- LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
- Expansion Slots
- 1 (total) / 1 (free) x SIM
Aerial
- Aerial
- External detachable
- Antenna Qty
- 2
Power
- Power Device
- External power adapter
Dimensions & Weight
- Width
- 17 cm
- Depth
- 18 cm
- Height
- 8 cm
- Weight
- 400 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
