Description

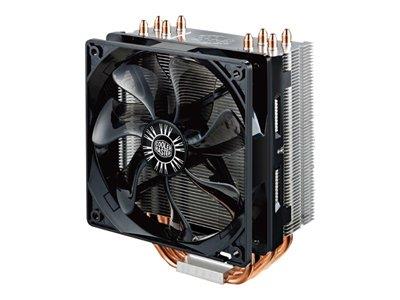

The Hyper 212 EVO cooling systems are designed and optimized to provide the best user experience and cooling potential for a new generation of processors. The Hyper 212 EVO now features four Cooler Master patented Continuous Direct Contact (CDC) heat pipes that are tightly packed into a flat array on the CPU Cooler base. This acts as a virtual vapor chamber that dissipates a large amount of heat. The aluminum fin structure has been optimized to provide the perfect performance balance between high and low speed fan operations
Highlights of the CoolerMaster Hyper 212 Evo - 4 Heatpipe, Tower CPU Cooler
- Well-balanced cooling performance provides fin optimizations with perfect balance between high and low speed operations
- 4 Direct Contact heat pipes with the patented CDC (Continuous Direct Contact) technology - creating a perfect, sleek surface for heat conduction
- Wide-range PWM fan with unique wave-shaped blade design for excellent airflow
Specifications
Summary
- Product Description
- Cooler Master Hyper 212 Evo - processor cooler
- Product Type
- Processor cooler
- Compatibility
- LGA1156 Socket, Socket AM2, Socket AM2+, LGA1366 Socket, Socket AM3, LGA1155 Socket, Socket AM3+, Socket FM1, LGA1150 Socket
- Heatsink Material
- Aluminium
- Fan Diameter
- 120 mm
- Fan Height
- 25 mm
- Fan Bearing
- Long life sleeve bearing
- Rotation Speed
- 600-1600 rpm
- Air Flow
- 24.9-66.3 cfm
- Noise Level
- 9 - 31 dBA
- Power Connector
- 4-pin fan connector
- Features
- Heat pipe technology, Pulse-width modulation (PWM) support
- Dimensions (WxDxH)
- 8 cm x 12 cm x 15.9 cm
- Weight
- 0.58 kg
Detailed Specification
General
- Product Type
- Processor cooler
- Width
- 8 cm
- Depth
- 12 cm
- Height
- 15.9 cm
- Weight
- 0.58 kg
Heatsink & Fan
- Compatible With
- LGA1156 Socket, Socket AM2, Socket AM2+, LGA1366 Socket, Socket AM3, LGA1155 Socket, Socket AM3+, Socket FM1, LGA1150 Socket
- Processor Compatibility
- Core i7 , Core i7 Extreme Edition , Core i5 , Core i3 , Core 2 Extreme , Core 2 Quad , Core 2 Duo , Pentium , Celeron , Phenom II , Phenom X3 , Phenom X4 , Athlon II , Athlon , Sempron , Athlon X2
- Heatsink Material
- Aluminium
- Heatsink Dimensions
- 159 mm x 116 mm x 51 mm
- Fan Diameter
- 120 mm
- Fan Height
- 25 mm
- Fan Bearing
- Long life sleeve bearing
- Rotation Speed
- 600-1600 rpm
- Air Flow
- 24.9-66.3 cfm
- Air Pressure
- 0.3-1.7 mm
- Noise Level
- 9 - 31 dBA
- Power Connector
- 4-pin fan connector
- Features
- Heat pipe technology, Pulse-width modulation (PWM) support
