Description
The Cisco 4000 series Integrated Services Routers (ISR) revolutionize WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, the routers specifically address the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.
Highlights of the Cisco ISR 4221 Router GigE WAN ports: 2 Rack-Mountable
- Cisco Intelligent WAN (IWAN)
- Cisco converged branch infrastructure
-
Cisco Intelligent WAN (IWAN)
Cisco IWAN is a set of intelligent software services that allow you to reliably and securely connect users, devices, and branch office locations across a diverse set of WAN transport links. IWAN-enabled routers like the 4000 series dynamically route traffic across the "best" link based on up-to-the-minute application and network conditions for great application experiences. You get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links - control that you need as your branches conduct greater volumes of mission-critical business. -
Cisco converged branch infrastructure
The Cisco 4000 series ISRs consolidate many must-have IT functions, including network, compute, and storage resources. The high-performance, integrated routers run multiple concurrent IWAN services, including encryption, traffic management, and WAN optimization, without slowing your data throughput. And you can activate new services on demand through a simple licensing change.
Specifications
Summary
- Product Description

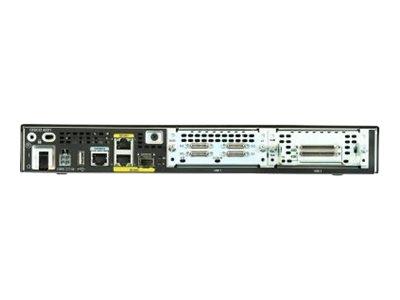

- Cisco Integrated Services Router 4221 - router - rack-mountable
- Device Type
- Router
- Enclosure Type
- Rack-mountable - modular - 1U
- WAN Ports Qty
- 2
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Aggregate throughput: 35 Mbps
- Network / Transport Protocol
- IPSec, PPPoE, DHCP
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast
- Remote Management Protocol
- SNMP, RMON
- Features
- VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX
- Compliant Standards
- IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 32.26 cm x 25.4 cm x 4.37 cm
- Weight
- 3.22 kg
Detailed Specification
General
- Device Type
- Router
- Enclosure Type
- Rack-mountable - modular - 1U
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Aggregate throughput: 35 Mbps
- Network / Transport Protocol
- IPSec, PPPoE, DHCP
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast
- Remote Management Protocol
- SNMP, RMON
- Features
- VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX
- Compliant Standards
- IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
- RAM
- 4 GB (installed) / 4 GB (max) - DDR3 SDRAM
- Flash Memory
- 8 GB (installed) / 8 GB (max)
Expansion / Connectivity
- Interfaces
- WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , Serial: 1 x console - RJ-45 , USB 2.0: 1 x 4 pin USB Type A , 1 x SFP (mini-GBIC) , Management: 1 x 1000Base-T - RJ-45
- Expansion Slots
- 2 (total) / 2 (free) x NIM
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- MTBF
- 593270 hours
Software / System Requirements
- OS Provided
- Cisco IOS IP Base
Dimensions & Weight
- Width
- 32.26 cm
- Depth
- 25.4 cm
- Height
- 4.37 cm
- Weight
- 3.22 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 85%
