Description
Cisco 1100 Series Integrated Services Routers (ISRs) are easy to deploy and manage, with cutting-edge, scalable, multicore separate data and control plane capabilities. The Cisco 1100 Series ISRs are well suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices, in service provider managed environments as well as smaller form factor and M2M use cases.

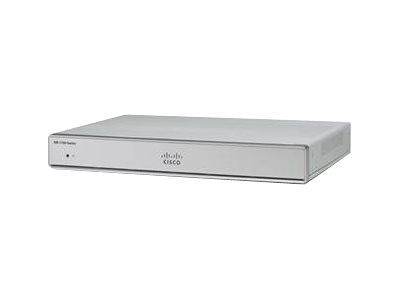

Highlights of the Cisco Integrated Services Router 1111 4-port Router
- Consistent, high application performance levels
- USB-based console access
-
Consistent, high application performance levels
The router can run multiple services simultaneously with minimal performance degradation. -
USB-based console access
A micro USB console port supports management connectivity when traditional serial ports are not available.
Specifications
Summary
- Product Description
- Cisco Integrated Services Router 1111 - router - desktop
- Device Type
- Router - 4-port switch (integrated)
- Enclosure Type
- Desktop
- WAN Ports Qty
- 1
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Encryption throughput: 250 Mbps
- Network / Transport Protocol
- IPSec, PPPoE, DHCP, DNS, L2TPv3
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
- Remote Management Protocol
- SNMP, RMON, CLI, TR-069
- Features
- Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)
- Compliant Standards
- IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 32.3 cm x 23 cm x 4.2 cm
- Weight
- 2.59 kg
Detailed Specification
General
- Device Type
- Router - 4-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Encryption throughput: 250 Mbps
- Network / Transport Protocol
- IPSec, PPPoE, DHCP, DNS, L2TPv3
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
- Remote Management Protocol
- SNMP, RMON, CLI, TR-069
- Encryption Algorithm
- DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA
- Authentication Method
- RADIUS
- Features
- Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)
- Compliant Standards
- IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
- RAM
- 4 GB
- Flash Memory
- 4 GB
- Status Indicators
- Status
Expansion / Connectivity
- Interfaces
- WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP , LAN: 2 x 1000Base-T - RJ-45 , LAN: 1 x 1000Base-T (PoE+) - RJ-45 , LAN: 1 x 1000Base-T (PoE) - RJ-45 , USB 3.0: 1 x
Power
- Voltage Required
- AC 120/230 V (50/60 Hz)
Dimensions & Weight
- Width
- 32.3 cm
- Depth
- 23 cm
- Height
- 4.2 cm
- Weight
- 2.59 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 65 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
