Description
The Cisco Catalyst 3560-CX series compact switches help optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi back haul, and Power over Ethernet (PoE) connectivity in places where space is at a premium. Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints. With their quiet, fan-less design and compact footprint, these switches offer flexible mounting options and open up a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations.

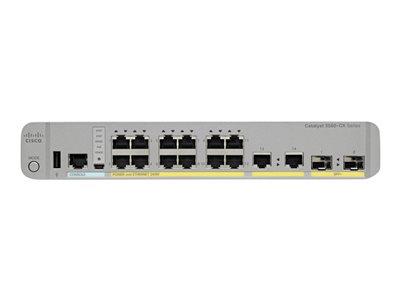

Highlights of the Cisco Catalyst 3560CX-8PC-S - Switch - Managed - 8 x 10/100/1000 (
- Gigabit Ethernet ports with line rate forwarding performance
- Power over Ethernet (PoE) support
- Fan-less design and silent operation
-
Small form factor, fan-less design, silent operation
The switch can be used in open workspaces and other areas that can't tolerate equipment noise and where multiple cable runs could be difficult, expensive, and intrusive. -
Flexible mounting options
The switch can be mounted on the wall, under a desk, rack, DIN rail, or practically anywhere they're needed. -
Perpetual PoE
It provides uninterrupted power to a powered-down device even when the switch is booting. This eliminates the need for a backup power source. -
Threat defense
Advanced, integrated security features provide threat defense capabilities for mitigating man-in-the-middle attacks and protecting your critical network infrastructure. -
Switch hibernate mode
This technology puts the switch in an ultra-low power mode during periods of non-operation such as nights and weekends.
Specifications
Summary
- Product Description
- Cisco Catalyst 3560CX-8PC-S - switch - 8 ports - Managed
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 240 W
- Performance
- Forwarding performance (64-byte packet size): 17.9 Mpps
- Routing Protocol
- RIP-1, RIP-2, static IP routing
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP
- Features
- Full duplex capability, Layer 3 switching, Layer 2 switching, auto-sensing per device, IP-routing, DHCP support, power over Ethernet (PoE), auto-negotiation, trunking, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, manageable, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 26.9 cm x 23.8 cm x 4.44 cm
- Weight
- 2.27 kg
Detailed Specification
General
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Desktop 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 240 W
- Performance
- Forwarding performance (64-byte packet size): 17.9 Mpps
- Routing Protocol
- RIP-1, RIP-2, static IP routing
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP
- Authentication Method
- Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Full duplex capability, Layer 3 switching, Layer 2 switching, auto-sensing per device, IP-routing, DHCP support, power over Ethernet (PoE), auto-negotiation, trunking, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, manageable, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- RAM
- 512 MB
- Flash Memory
- 128 MB
- Status Indicators
- Port status, port transmission speed, port duplex mode, power, link OK, system
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ , 1 x 1000Base-T RJ-45 , 1 x SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 25.4 Watt
Miscellaneous
- MTBF
- 569,530 hours
- Compliant Standards
- FCC Class A certified, UL, TUV GS, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CB, AS/NZ 3548 Class A, FCC Part 15, CSA C22.2 No. 60950-00, MIC
Software / System Requirements
- Software Included
- Cisco IOS IP Base
Dimensions & Weight
- Width
- 26.9 cm
- Depth
- 23.8 cm
- Height
- 4.44 cm
- Weight
- 2.27 kg
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
