Description

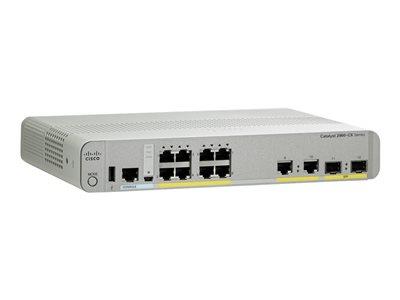

The Cisco Catalyst 2960-CX Series Compact Switch help optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.
Highlights of the Cisco Catalyst 2960 8-port Managed Switch
- Small form factor; fan-less design; silent operation
- Flexible mounting options
- 10-Gigabit SFP+ uplinks
-
Small form factor; fan-less design; silent operation
The switch can be used in open workspaces and other areas that can't tolerate equipment noise and where multiple cable runs could be difficult, expensive, and intrusive. -
Flexible mounting options
The switch can be mounted on the wall, under a desk, rack, DIN rail, or practically anywhere they're needed. -
10-Gigabit SFP+ uplinks
Accommodates business growth and increased traffic, such as aggregate upstream gigabit traffic loads from 802.11ac Wi-Fi access points.
Specifications
Summary
- Product Description
- Cisco Catalyst 2960CX-8TC-L - switch - 8 ports - Managed - rack-mountable
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x SFP + 2 x 10/100/1000 (uplink)
- Performance
- Forwarding performance: 12 Gbps , Forwarding performance (64-byte packet size): 17.9 Mpps
- Capacity
- Virtual interfaces (VLANs): 1023
- Jumbo Frame Support
- 9018 bytes
- Routing Protocol
- RIP-1, RIP-2, static IP routing
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
- Features
- BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), fanless, Shaped Round Robin (SRR), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Weighted Tail Drop (WTD)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 26.9 cm x 21.3 cm x 4.44 cm
- Weight
- 1.72 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Desktop, rack-mountable, DIN rail mountable, wall-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x SFP + 2 x 10/100/1000 (uplink)
- Performance
- Forwarding performance: 12 Gbps , Forwarding performance (64-byte packet size): 17.9 Mpps
- Capacity
- Virtual interfaces (VLANs): 1023
- Jumbo Frame Support
- 9018 bytes
- Routing Protocol
- RIP-1, RIP-2, static IP routing
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
- Authentication Method
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Features
- BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), fanless, Shaped Round Robin (SRR), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Weighted Tail Drop (WTD)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az
- RAM
- 512 MB
- Flash Memory
- 128 MB
- Status Indicators
- Port status, port transmission speed, port duplex mode, system, link/activity
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 , 1 x console RJ-45 , 1 x mini-USB Type B management , 1 x USB Type A , 2 x 1000Base-T RJ-45 uplink , 2 x SFP uplink
Power
- Power Device
- Internal power supply
- Power Provided
- 300 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 16.7 Watt
- 80 PLUS Certification
- 80 PLUS Silver
Miscellaneous
- MTBF
- 756,260 hours
- Compliant Standards
- GOST, CISPR 24, EN55022, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, GB 4943, KCC Class A, IEC 60825, KN22, KN24, VCCI V-3/2007.04 Class A, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
- Software Included
- Cisco IOS LAN Base
Dimensions & Weight
- Width
- 26.9 cm
- Depth
- 21.3 cm
- Height
- 4.44 cm
- Weight
- 1.72 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - lifetime - response time: next business day , Technical support - consulting - 90 days
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
