Description

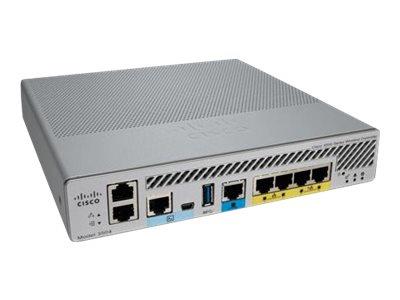

The Cisco 3504 Wireless Controller provides centralized control, management, and troubleshooting for small to medium-sized enterprises and branch offices. It offers flexibility to support multiple deployment modes in the same controller - a centralized mode for campus environments, Cisco FlexConnect mode for lean branches managed over the WAN, and a mesh (bridge) mode for deployments in which full Ethernet cabling is unavailable. As a component of the Cisco Unified Wireless Network, the 3504 controller provides real-time communications between Cisco Aironet Access Points, Cisco Prime Infrastructure, and the Cisco Mobility Services Engine, and is interoperable with the Cisco 5520 and 8540 Wireless Controllers.
Highlights of the Cisco 3504 Wireless Controller
- Quiet operation, with a small form factor and compact design ideal for space-constrained deployments, providing flexibility without compromising on features
- Cisco Multigigabit Ethernet technology to support next-generation 802.11ac Wave 2 deployments using existing cabling infrastructure
- Subsecond access point and client failover for uninterrupted application availability
- An embedded wireless bring-your-own-device (BYOD) policy classification engine that allows classification of client devices and application of user group policies
- Guest access and Bonjour and Chromecast services in centralized deployments
- Software-defined segmentation with Cisco TrustSec technology, reducing access control list (ACL) maintenance, complexity, and overhead
- Integrated Cisco CleanAir technology, providing the industry's only self-healing and self-optimizing wireless network
- A simplified GUI wizard for quick setup and intuitive dashboards for monitoring and troubleshooting
Specifications
Summary
- Product Description
- Cisco Wireless Controller 3504 - network management device - Wi-Fi
- Device Type
- Network management device
- Form Factor
- Desktop
- Ports Qty
- 4
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1
- Performance
- Throughput: 4 Gbps
- Capacity
- Maximum number of access points: 150 , Maximum number of clients: 3000 , VLANs supported: 4096
- Power Over Ethernet (PoE) Supported
- PoE
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 4.394 cm x 34.13 cm x 21.59 cm
- Weight
- 2 kg
- Manufacturer Warranty
- 90 days warranty
Detailed Specification
General
- Device Type
- Network management device
- Width
- 4.394 cm
- Depth
- 34.13 cm
- Height
- 21.59 cm
- Weight
- 2 kg
Networking
- Form Factor
- Desktop
- Ports Qty
- 4
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1
- Network / Transport Protocol
- TCP/IP, UDP/IP, ICMP/IP, ARP, BOOTP, DHCP
- Routing Protocol
- CIDR
- Remote Management Protocol
- SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
- Performance
- Throughput: 4 Gbps
- Capacity
- Maximum number of access points: 150 , Maximum number of clients: 3000 , VLANs supported: 4096
- Status Indicators
- Diagnostic
- Features
- Syslog support, IPv6 support, deep inspection, SNTP support, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, CleanAir technology, Unified Communications, CAPWAP support, Management Information Base (MIB), Multicast filtering function, Cisco VideoStream technology, Link Aggregation, Management Information Base (MIB) II, Application Visibility and Control (AVC), TrustSec support, Private MIB
- Encryption Algorithm
- DES, Triple DES, RC4, AES, IKE, TLS 1.0, TKIP, WPA, WPA2, PKI, AES-CBC, DTLS, WEP, TLS 1.2, ESP, ISAKMP, CRL, CBS, CCM, CCMP
- Authentication Method
- RADIUS, TACACS, Extensible Authentication Protocol (EAP)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.1ae, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2
Expansion / Connectivity
- Interfaces
- 1 x 10GBase-T - RJ-45 , 4 x 1000Base-T - RJ-45 , 1 x console - RJ-45 , 1 x serial - RJ-45 , 1 x redundancy - RJ-45 , 1 x console - mini-USB , 1 x USB 3.0
Miscellaneous
- Compliant Standards
- EN 61000-3-2, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, FCC CFR47 Part 15 B, HMAC, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class B, KN24, KCC KN22 Class B, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 6100-3-3, EN 55032 Class B, CNS 13438 Class B
Power
- Power Over Ethernet (PoE) Supported
- PoE
- Voltage Required
- AC 120/230 V (50/60 Hz)
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - 90 days - response time: 10 days
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
