Description
Get print, scan, copy and fax functionality from one compact printer, perfect for businesses tight on space. With flexible connectivity, rapid printing and intuitive controls, the MF543x will take productivity to another level.

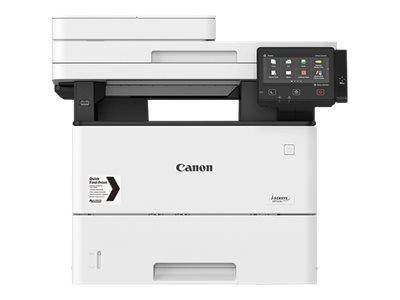

Highlights of the Canon i-SENSYS MF543x Mono Laser Multifunction Printer
- 43 ppm single-sided A4
- Customisable on-screen applications
- PIN document release
- 12.7 cm color touchscreen
- Android and iOS compatible
- Print, scan, copy and fax
- Double-sided single-pass scanning
- High quality, high-yield cartridges
Specifications
Summary
- Product Description
- Canon i-SENSYS MF543x - multifunction printer - B/W
- Device Type
- Multifunction printer
- Fax Type
- Super G3 - plain paper
- Printing Technology
- Laser (monochrome)
- Monthly Duty Cycle (max)
- 150000 pages
- Recommended Monthly Volume
- 2000 - 7500 pages
- Max Copying Speed
- Up to 43 ppm
- Max Copying Resolution
- Up to 600 x 600 dpi
- Max Printing Speed
- Up to 43 ppm
- Max Printing Resolution
- Up to 1200 x 1200 dpi
- Max Fax Transmission Speed
- 33.6 Kbps
- Fax Resolutions
- 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 400 x 400 dpi
- Scanning
- 600 x 600 dpi
- Original Size
- 105 x 128 mm (min) - A4 (210 x 297 mm), Legal (216 x 356 mm) (max)
- Original Type
- Sheets
- Document Feeder Capacity
- 50 sheets
- Media Size
- 76.2 x 127 mm (min) - Legal (216 x 356 mm), A4 (210 x 297 mm) (max)
- Media Type
- Envelopes, plain paper, labels, recycled paper, heavy-weight paper, thin paper, postcards
- Standard Media Capacity
- 650 sheets
- Bypass Feeder Capacity
- 100 sheets
- Output Trays Capacity
- 150 sheets
- Automatic Duplexing
- Yes (copying) Yes (printing) Yes (scanning)
- Connection Availability
- Yes
- Interface
- USB 2.0, Gigabit LAN, Wi-Fi(n), USB host, NFC
- AirPrint Enabled
- Yes
- Office Machine Features
- Print from USB flash drive, scan to e-mail, scan to Cloud, scan to FTP, scan to SMB, scan to PC, iFAX
- Power
- AC 230 V (50/60Hz)
- Dimensions (WxDxH)
- 49.4 cm x 46.4 cm x 45.2 cm
- Weight
- 19.8 kg
Detailed Specification
General
- Printer Fonts
- PCL x 93 , PostScript x 136
- Device Type
- Multifunction printer
- Fax Type
- Plain paper
- Printing Technology
- Laser - monochrome
- Monthly Duty Cycle (max)
- 150000 pages
- Recommended Monthly Volume
- 2000 - 7500 pages
- Display Colour Support
- Colour
- Display Features
- Touch screen
- Connection Availability
- Yes
- Interface
- USB 2.0, Gigabit LAN, Wi-Fi(n), USB host, NFC
- AirPrint Enabled
- Yes
- Office Machine Features
- Print from USB flash drive, scan to e-mail, scan to Cloud, scan to FTP, scan to SMB, scan to PC, iFAX
Memory
- Standard Memory
- 1 GB
Copying
- Max Copying Speed
- Up to 43 ppm
- Max Copying Resolution
- Up to 600 x 600 dpi
- Grayscale Half-Tones
- 256
- Max Document Enlargement
- 400%
- Max Document Reduction
- 25%
- Maximum Copies
- 999
- Exposure Modes
- Text, photo, text and photo
- Automatic Duplexing
- Yes
- Copying Features
- 2 on 1, 4 on 1, ID Card Copy, Frame Erase Copy, collation copy
Printing
- Max Printing Resolution
- Up to 1200 x 1200 dpi
- Max Printing Speed
- Up to 43 ppm
- Printer Drivers / Emulations
- PCL 5e, PCL 6, PostScript 3, PDF, TIFF, UFRII, JPEG
- Automatic Duplexing
- Yes
- First Print Out Time B/W
- 5.7 sec
Scanning
- Automatic Duplexing
- Yes
- Optical Resolution
- 600 x 600 dpi
- Interpolated Resolution
- 9600 x 9600 dpi
- Colour Depth
- 24-bit
- Colour Depth (Internal)
- 24-bit
Fax Machine
- Compatibility
- Super G3
- Max Transmission Speed
- 33.6 Kbps
- Fax Resolutions
- 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 400 x 400 dpi
- Total Memory Capacity
- Up to 512 pages
- PC Faxing
- Yes (send only)
Fax Machine Features
- Error Correction Mode (ECM)
- Yes
- Speed Dialing
- 281 station(s)
- Telephone / Fax Switch
- Yes
- Broadcast Transmission
- 310 stations
- Features
- Fax forwarding, Distinctive Ring Pattern Detection (DRPD), automatic redialing, remote reception, Dual Access, fax activity reports
Document & Media Handling
- Min Original Size
- 105 x 128 mm
- Max Original Size
- A4 (210 x 297 mm), Legal (216 x 356 mm)
- Supported Original Sizes
- ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), A6 (105 x 148 mm), Statement (139.7 x 215.9 mm), 105 x 128 mm
- Original Type
- Sheets
- Document Feeder Capacity
- 50 sheets
- Min Media Size
- 76.2 x 127 mm
- Max Media Size
- A4/Legal
- Min Media Weight
- 60 g/m²
- Max Media Weight
- 199 g/m²
- Supported Media Type
- Envelopes, plain paper, labels, recycled paper, heavy-weight paper, thin paper, postcards
- Supported Media Sizes
- ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), A6 (105 x 148 mm), Statement (139.7 x 215.9 mm), 76.2 x 127 mm, Oficio (216 x 343 mm), Foolscap (216 x 343 mm)
- Supported Envelope Sizes
- International DL (110 x 220 mm), Com-10 (105 x 241 mm), International C5 (162 x 229 mm), Monarch (98.4 x 190.5 mm)
- Standard Media Capacity
- 650 sheets
- Bypass Feeder Capacity
- 100 sheets
- Output Trays Capacity
- 150 sheets
- Document & Media Handling Details
- DSDF - 50 sheets size: 105 x 128 mm - Legal (216 x 356 mm)/A4 (210 x 297 mm) weight: 50 g/m² - 105 g/m² , Paper cassette - 550 sheets size: A6 (105 x 148 mm) - Legal (216 x 356 mm)/A4 (210 x 297 mm) weight: 60 g/m² - 120 g/m² , Bypass tray - 100 sheets size: 76.2 x 127 mm - Legal (216 x 356 mm)/A4 (210 x 297 mm) weight: 60 g/m² - 199 g/m² , Output tray - 150 sheets
- Speed Details
- Printing: up to 43 ppm (A4) - B/W , Printing: up to 65.2 ppm (A5) - B/W , Printing: up to 36 ipm (A4) - B/W duplex , Copying: up to 43 ppm (A4) - B/W , Copying: up to 34.4 ipm - B/W duplex , Scanning: up to 38 ipm - B/W , Scanning: up to 13 ipm - colour , Scanning: up to 70 ipm - B/W duplex , Scanning: up to 26 ipm - colour duplex
Connections
- Interfaces
- 1 x USB host - 4 pin USB Type A , 1 x Gigabit LAN - RJ-45 , 1 x USB 2.0 - 4 pin USB Type B
- Security Protocols & Features
- Secure Print, SSL, Apple Bonjour, WEP, WPA-PSK, 802.1x, WPA2-PSK, TKIP, AES, IP filtering, PING, ARP, MAC address filtering, SNMP 3
- Operating System Support
- Linux, MS Windows 7, MS Windows Server 2008, MS Windows Server 2008 R2, MS Windows Server 2012, Android, iOS, Windows 8.1, MS Windows Server 2012 R2, Windows 10, Apple Mac OS X 10.9.5 or later, MS Windows Server 2016, macOS 10.14, MS Windows Server 2019
- Software Included
- Drivers & Utilities, iW Management Console, uniFLOW online, uniFLOW online Express
Power
- Voltage Required
- AC 230 V (50/60Hz)
- Power Consumption Operational
- 1430 Watt
- Power Consumption Standby
- 13.6 Watt
- Power Consumption Sleep
- 0.9 Watt
Miscellaneous
- Warm-Up Time
- 14 sec
- Consumables Included
- 1 x Cartridge (black) - up to 5100 pages - Canon 056L
Dimensions & Weight
- Width
- 49.4 cm
- Depth
- 46.4 cm
- Height
- 45.2 cm
- Weight
- 19.8 kg
Environmental Parameters
- Sound Emission
- 24 dB (idle) / 54 dB (operating)
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 30 °C
- Humidity Range Operating
- 20 - 80% (non-condensing)
