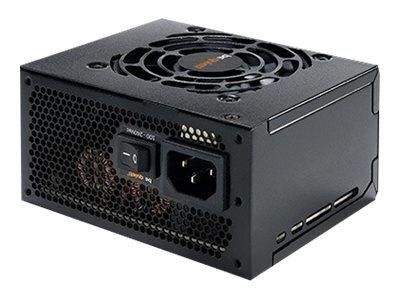

Be Quiet BN226 SFX POWER 2 Power Supply 300 Watts
Description
The compact PSU SFX Power 2 300W gives you more for your mini or media PC. Its design supports the technologies and efficiency standards, while providing solid voltages and enough power to support a discrete PCIe graphics card.
For compact PC systems that perform well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency, choose SFX Power 2 300W.
Highlights of the Be Quiet BN226 SFX POWER 2 Power Supply 300 Watts
- Strong dual 12 V-rail design supports high stability and a PCIe connector for peripherals that need more power, like a PCIe graphics card
- 300 watts of continuous power to ensure steady operation even when your PC meets an unexpectedly heavy load
- 80Plus Bronze certification and up to 89% power conversion efficiency let you use the provided energy more efficiently and reduces your power bills
Specifications
Summary
- Product Description
- be quiet! SFX Power 2 300W - power supply - 300 Watt
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- SFX12V 3.3
- 80 PLUS Certification
- 80 PLUS Bronze
- Input Voltage
- AC 100-240 V
- Output Voltage
- +3.3, +5, ±12 V
- Power Capacity
- 300 Watt
- Output connectors
- 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 4 pin ATX12V connector , 1 x 8 pin PCI Express power with detachable 2 pin section , 1 x 4 PIN internal power , 1 x 4 PIN mini-power connector , 4 x 15 pin Serial ATA power
- Cooling System
- 80 mm fan
- Included Accessories
- Cable ties
- Colour
- Black
- Dimensions (WxDxH)
- 12.5 cm x 10 cm x 6.35 cm
- Environmental Standards
- ENERGY STAR
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- SFX12V 3.3
- PSU Form Factor
- SFX
- Colour
- Black
Power Device
- Input Voltage
- AC 100-240 V
- Frequency Required
- 50 - 60 Hz
- Power Output Connectors Details
- 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 4 pin ATX12V connector , 1 x 8 pin PCI Express power with detachable 2 pin section , 1 x 4 PIN internal power , 1 x 4 PIN mini-power connector , 4 x 15 pin Serial ATA power
- Output Voltage
- +3.3, +5, ±12 V
- Power Capacity
- 300 Watt
- Output Current
- +3.3V - 21 A , +5V - 20 A , +12V1 - 14 A , +12V2 - 16 A , -12V - 0.5 A , +5VSB - 2.5 A
- Efficiency
- 89%
- 80 PLUS Certification
- 80 PLUS Bronze
Miscellaneous
- Included Accessories
- Cable ties
- Cables Included
- Power cable - external - 1.5 m
- MTBF
- 100,000 hours
- Cooling System
- 80 mm fan
- Features
- Over current protection, over voltage protection, undervoltage protection, dual 12V rails, short-circuit protection, non-modular
- Compliant Standards
- TUV, CB, RoHS, WEEE, ERP
Environmental Standards
- ENERGY STAR
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 50 °C
- Sound Emission
- 31.4 dBA
Dimensions & Weight
- Width
- 12.5 cm
- Depth
- 10 cm
- Height
- 6.35 cm
Dimensions & Weight (Shipping)
- Shipping Width
- 19.9 cm
- Shipping Depth
- 19.5 cm
- Shipping Height
- 7.5 cm
- Shipping Weight
- 1.3 kg
