Description
With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K UHD resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements.

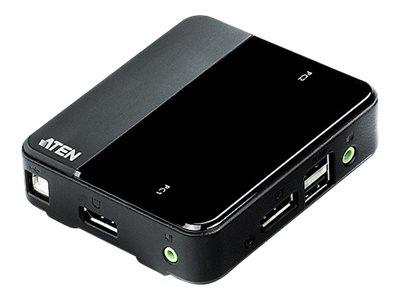

The ATEN CS782DP 2-Port USB DisplayPort KVM Switch features 4K UHD video resolution and allows users to access two 4K-enabled computers from a single USB keyboard, USB mouse, and DisplayPort video console.
Doing so with ease, the CS782DP provides three convenient switching methods - using a remote port selector, mouse, or hotkeys for flexible access to any computer connected to the installation. The product even provides premium audio support for a complete multimedia solution. To round off the entire experience, the streamlined, space-saving design of CS782DP also makes it ideal for any working environment.
With its rich feature set, the CS782DP is designed to surpass all requirements in graphic design, animation, and video-editing applications.
Highlights of the Aten 2 Port USB DisplayPort KVM Switch 4K
- One DisplayPort video console controls two USB computers
- Fully DisplayPort 1.2 Compliant
- Computer selection via remote port selector, hotkeys, and USB mouse
- Superior video quality - up to 4K UHD (3840 × 2160@60Hz)
- HDCP Compliant
- Supports MST (Multi-Stream Transport), enabling multiple monitors to be used via a single DisplayPort connector
- Supports DisplayPort Dual Mode (DP++) for directly outputting single-link HDMI and or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter
- Compatible with widescreen LCD monitors
- Power on detection - if either of the computers is powered off, the CS782DP will automatically switch to the other computer
- Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Supports HD Audio through DisplayPort playback
- Independent switching of the KVM and Audio focus allows convenient multi-tasking
- Supports multimedia keyboards
- Supports wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac/Sun keyboard support and emulation
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
- Bus-Powered
Specifications
Summary
- Product Description
- ATEN CS782DP - KVM / audio / USB switch - 2 ports
- Device Type
- KVM / audio / USB switch - 2 ports
- Subtype
- KVM
- Ports
- 2 x KVM / audio / USB
- KVM Users Qty
- 1 local user
- Features
- Firmware upgradable, HDCP compliant, plastic housing, Remote Port Selector, 4K resolution support
- Dimensions (WxDxH)
- 9.3 cm x 9.37 cm x 2.68 cm
- Weight
- 120 g
Detailed Specification
General
- Device Type
- KVM / audio / USB switch - 2 ports
- Enclosure Type
- Desktop
- Subtype
- KVM
- Ports
- 2 x KVM / audio / USB
- KVM Local Users Qty
- 1 local user
- Keyboard / Mouse Interface
- USB
- Max Resolution
- 3840 x 2160 @ 60 Hz
- Features
- Firmware upgradable, HDCP compliant, plastic housing, Remote Port Selector, 4K resolution support
- Status Indicators
- KVM
Expansion / Connectivity
- Interfaces
- 2 x USB 2.0 Type B , 2 x DisplayPort , 2 x USB 2.0 Type A , 2 x audio mini-jack , 1 x audio mini-jack , 1 x remote control mini-jack
Power
- Power Device
- External power adapter
- Power Consumption Operational
- 4 Watt
Miscellaneous
- Cables Included
- 2 x USB cable - 1.8 m , 2 x DisplayPort cable - 1.8 m , 2 x audio cable - 1.8 m
Dimensions & Weight
- Width
- 9.3 cm
- Depth
- 9.37 cm
- Height
- 2.68 cm
- Weight
- 120 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 0 - 80% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 60 °C
