Description
Smart-UPS SRT provides high density, true double-conversion power protection for servers, voice / data networks, medical labs, and light industrial applications. When business-critical systems require runtime in hours, not minutes, Smart-UPS SRT can be configured with matching battery packs to comply with aggressive runtime demands. It provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Highlights of the APC Smart-UPS SRT 72V 2.2kVA RM Battery Pack Battery Enclosure
- Hot-swappable batteries
-
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Specifications
Summary
- Product Description

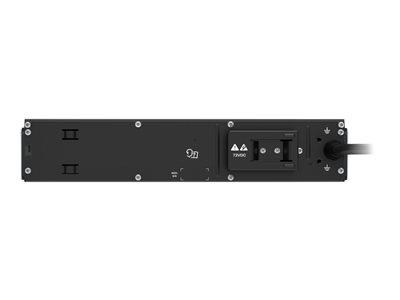

- APC Smart-UPS SRT 72V 2.2kVA RM Battery Pack - battery enclosure - Lead Acid
- Device Type
- Battery enclosure - rack-mountable
- Rack Size
- 2U
- Weight
- 33.9 kg
- Battery
- Lead Acid
- Batteries Qty
- 2
- Colour
- Black
- Dimensions (WxDxH)
- 43.2 cm x 59.4 cm x 8.5 cm
- Manufacturer Warranty
- 3-year warranty
- Designed For
- P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, SRT10KRMXLI, SRT10KXLI, SRT10RMXLIX806, SRT2200RMXLA, SRT2200RMXLA-NC, SRT2200RMXLAUS, SRT2200RMXLI, SRT2200RMXLI-NC, SRT6KRMXLI, SRT6KRMXLI-6W, SRT6KRMXLIM, SRT6KXLI
Detailed Specification
General
- Device Type
- Battery enclosure - rack-mountable
- Height (Rack Units)
- 2U
- Colour
- Black
Battery
- Quantity
- 2
- Technology
- Lead Acid
- Features
- Maintenance free, sealed, leak-proof
Miscellaneous
- Compliant Standards
- RoHS, REACH
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - batteries - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95%
Dimensions & Weight
- Width
- 43.2 cm
- Depth
- 59.4 cm
- Height
- 8.5 cm
- Weight
- 33.9 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 59.9 cm
- Shipping Depth
- 83.1 cm
- Shipping Height
- 23.9 cm
- Shipping Weight
- 40.82 kg
Compatibility Information
- Designed For
- P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, SRT10KRMXLI, SRT10KXLI, SRT10RMXLIX806, SRT2200RMXLA, SRT2200RMXLA-NC, SRT2200RMXLAUS, SRT2200RMXLI, SRT2200RMXLI-NC, SRT5KXLI, SRT6KRMXLI, SRT6KRMXLI-6W, SRT6KRMXLIM, SRT6KXLI
