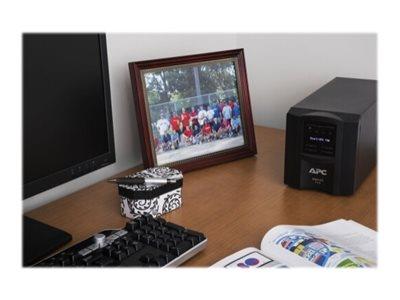

Name: APC Smart-UPS 750VA LCD 230V
Price: 294.26 GBP
Availability: InStock
Rating: 0.0 (0 reviews)

Description

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Highlights of the APC Smart-UPS 750VA LCD 230V

Protects your data by supplying reliable, network-grade power for space constrained business critical applications
Perfect UPS for protecting business critical fileservers, minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs

Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Specifications

Summary

Product Description: APC Smart-UPS SMT750IC - UPS - 500 Watt - 750 VA - with APC SmartConnect

Device Type: UPS - external

Weight: 13.18 kg

Input Voltage: AC 220/230/240 V

Output Voltage: AC 230 V ± 5%

Power Capacity: 500 Watt / 750 VA

Input Connectors: 1 x power IEC 60320 C14

Output connectors: 6 x power IEC 60320 C13 , 2 x IEC jumper

Battery: Lead Acid

Batteries Qty: 1

Run Time (Up To): 4.6 min at full load

Networking: RS-232, USB

Colour: Black

Dimensions (WxDxH): 13.8 cm x 35.81 cm x 15.75 cm

Manufacturer Warranty: 3-year warranty

Bundled with: APC SmartConnect

Designed For: P/N: AR4000MVX429, AR4000MVX432, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X432, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4038IX429, AR4038IX431, AR4038IX432

Detailed Specification

General

Device Type: UPS - external

Colour: Black

Bundled with: APC SmartConnect

Power Device

UPS Technology: Line interactive

Input Voltage: AC 220/230/240 V

Input Voltage Range: AC 160 - 286 V

Input Voltage Range (Adjustable): AC 151 - 302 V

Frequency Provided: 50/60 Hz ± 3Hz

Frequency Required: 50/60 Hz ± 3Hz

Input Connectors: 1 x power IEC 60320 C14

Power Output Connectors Details: 6 x power IEC 60320 C13 , 2 x IEC jumper

Output Voltage: AC 230 V ± 5% - 50/60 Hz

Power Capacity: 500 Watt / 750 VA

Output Waveform: Sinewave

Surge Suppression: Yes

Surge Energy Rating: 540 Joules

Circuit Protection: Circuit breaker

Battery

Quantity: 1

Technology: Lead Acid

Run Time (Up To): 4.6 min at full load , 15.9 min at half load , 103 min at 50 Watts , 50.5 min at 100 Watts , 21.7 min at 200 Watts , 12 min at 300 Watts , 7.3 min at 400 Watts

Recharge Time: 3 hours

Transfer Time: 6 ms

Features: Maintenance free, sealed, leak-proof

Networking

Remote Management Interface: RS-232, USB

Expansion / Connectivity

Interfaces: 1 x management (RS-232) - RJ-45 , 1 x management (USB)

Expansion Slots: 1 (total) / 1 (free) x SmartSlot

Miscellaneous

Cables Included: Serial cable - external , USB cable - external , Power cable 1.83 m

Features: Audible alarm, LCD display, Automatic Voltage Regulation (AVR), cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries, energy metre

Compliant Standards: CSA, UL 1778, VDE, IEC 62040-2, RoHS, REACH, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1

Software / System Requirements

Software Included: APC PowerChute Business Edition

Manufacturer Warranty

Service & Support: Limited warranty - replace or repair - 3 years , Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature: 0 °C

Max Operating Temperature: 40 °C

Humidity Range Operating: 0 - 95%

Sound Emission: 40 dBA

Dimensions & Weight

Width: 13.8 cm

Depth: 35.81 cm

Height: 15.75 cm

Weight: 13.18 kg

Dimensions & Weight (Shipping)

Shipping Width: 27.8 cm

Shipping Depth: 39.9 cm

Shipping Height: 30.1 cm

Shipping Weight: 14.23 kg

Compatibility Information

Designed For: P/N: AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432
