Description

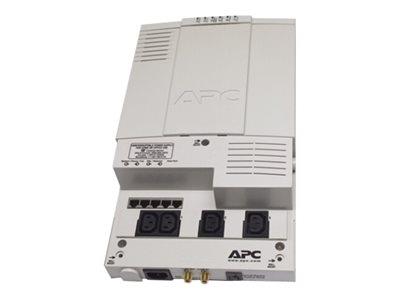

APC Back-UPS HS 500 is a compete management and power protection solution for structured wiring and home networking applications. It provides the flexibility to remotely manage the UPS and control the outlets via Web browser.
Highlights of the APC Back-UPS 500 Structured Wiring UPS 230V
- User-replaceable batteries
- Safety-agency approved
- Network manageable
- Resettable circuit breaker
- Transformer-block spaced outlets
-
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) -
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment -
Network manageable
Provides remote power management of the UPS over the network -
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs) -
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles
Specifications
Summary
- Product Description
- APC Back-UPS HS 500 - UPS - 500 VA
- Device Type
- UPS - external
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V
- Power Capacity
- 500 VA
- Input Connectors
- 1 x power IEC 60320 C6
- Output connectors
- 4 x power IEC 60320 C13
- Battery
- Lead Acid
- Run Time (Up To)
- 4.4 min at full load
- Colour
- Beige
- Dimensions (WxDxH)
- 22.5 cm x 10.5 cm x 37.2 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- UPS - external
- Colour
- Beige
Power Device
- Input Voltage
- AC 230 V
- Frequency Required
- 47 - 63 Hz
- Input Connectors
- 1 x power IEC 60320 C6
- Power Output Connectors Details
- 4 x power IEC 60320 C13
- Output Voltage
- AC 230 V
- Power Capacity
- 500 VA
- Dataline Surge Protection
- Phone line - RJ-11 , Ethernet 10/100Base-TX - RJ-45 , Audio / video
- Surge Suppression
- Yes
- Surge Energy Rating
- 600 Joules
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 4.4 min at full load
Miscellaneous
- Cables Included
- Network cable - external , Power cable - integrated - 2.44 m
- Features
- LED display, audible alarm
- Compliant Standards
- FCC Class B certified, UL, cUL, FCC Part 68, IC
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95%
Dimensions & Weight
- Width
- 22.5 cm
- Depth
- 10.5 cm
- Height
- 37.2 cm
